SS 800 • AMC
SKU
AMC.SS800
Warranty:
24 months
Availability:

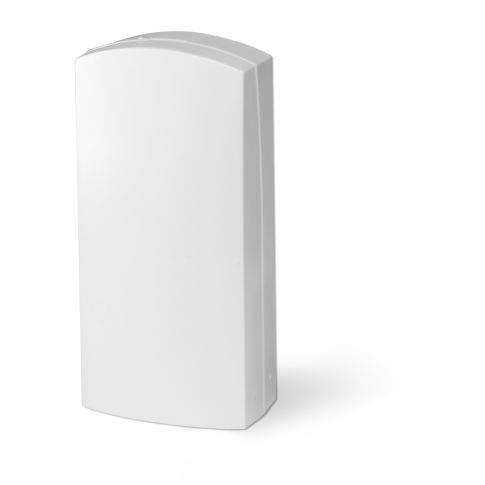

Wireless seismic detector with 2 inputs entirely separated and configurable
| Content | |
| Performance | |
| Communication | Wireless |
|---|---|
| Installation Environment | Indoor |
| Compatibility | VITA series, LARIO, K series, K series V, X series, X series V, XR800, XR800 V |
| Sensing Element | Accelerometer, Piezoelectric sensor |
| Detection Technology | Shock detector, Seismic detector |
| Detection Range / Coverage | N/A |
| Detection Zones | N/A |
| Detection Angle | N/A |
| PIR Lens Type | N/A |
| Activation Threshold | N/A |
| Notification Type | N/A |
| Siren Volume | N/A |
| Alarm Period | 4 s |
| Alarm Logic | N/A |
| Detectable Speed | |
| Sensitivity | Adjustable, 15 levels |
| Walk Test | N/A |
| Microwave frequency | N/A |
| Alarm Relay Output | |
| EOL Resistors | |
| Anti-masking | N/A |
| Anti-Sabotage and Tampering | Anti-opening tamper, Back tamper |
| Warm-up Period | N/A |
| RFI Protection | N/A |
| Temperature Compensation / Sensor | N/A |
| Installation Height | N/A |
| Pet Immunity | N/A |
| Pet Immunity | N/A |
| Communication Technology | |
| Radio Technologies | FSK |
| Communication Range | N/A |
| Communication Type | Two-way |
| Operating Frequencies | 868.3 MHz |
| Maximum effective radiated power | N/A |
| Encryption | AES 128 |
| Rolling Code / Frequency Hopping | Rolling code |
| Video | |
| Video Verification | N/A |
| Camera Lens | N/A |
| Camera Angle | N/A |
| Camera Resolution (max) | N/A |
| Frame Rate (max) | N/A |
| Illumination | N/A |
| Wireless | N/A |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C |
| Humidity | N/A |
| Ingress Protection | N/A |
| Electrical | |
| Input Voltage | 3.6 V DC |
| Power Consumption | 1.2 µA (Standby), 20 mA (Alarm) |
| Battery | Lithium, 1x 1/2AA |
| Battery Life | N/A |
| Mechanical | |
| Dimensions | 37.0 x 78.0 x 21.0 mm |
| Net Weight | 0.180 |
| Casing material | ABS |
| Casing Color | White |
| Mounting Type | Wall mounting |
| Certification | |
| Certificates | CE, EN 50131 |
| Package | |
| Package Contents | Installation manual |
| Related Accessory | VITA 24, VITA 64, VITA 128, K 4, K 4 V, K 8, K 8 V, K 8 Plus, K 8 Plus V, X 412, X 412 V, X 824, X 824 V, X 864, X 864 V, LARIO |
| Link to Manufacturer | www.amcelettronica.com/en |
| Notes | N/A |
| mageworx-dynamic-options | |
