PNM-9031RV • Wisenet
SKU
PNM9031RV
Warranty:
24 months
Availability:

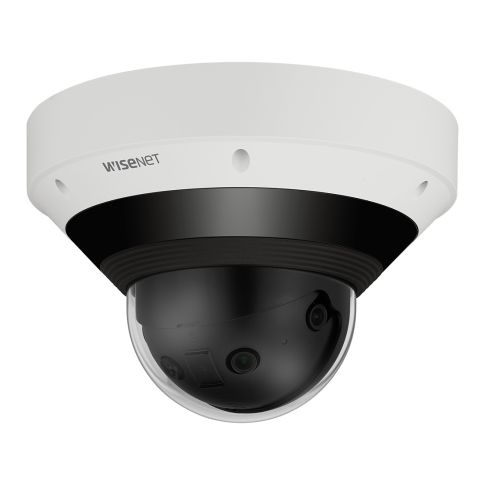

16 MP quad sensor network IR 197° panoramic dome camera
| Content | |
| Camera | |
| Image Sensor Type | Progressive scan CMOS |
|---|---|
| Image Sensor Size | 4x 1/2.8" |
| Day and Night Mode | 4x True day / night ICR |
| Minimum Illumination (Color) | 0.1 lux |
| Minimum Illumination (B/W) | 0.01 lux |
| Low Light Technology | N/A |
| Color Technology | N/A |
| Illumination | Wise IR LED |
| Viewable Length | 20 m |
| Lens | |
| Lens Type | 4x Fixed lens |
| Focal Length | 4.3 mm |
| Zoom Ratio | N/A |
| Field of View (H) | 197° (Panoramic) |
| Iris Control | Fixed iris |
| LiDAR | N/A |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 360° / 0° ~ 60° |
| Pan / Tilt Speed | N/A |
| Video | |
| Video Compression | H.265, H.264, M-JPEG |
| Smart / Wise / Zip Streaming | WiseStream II |
| Maximum Resolution | 4x 4 MP / 6720 x 2240 |
| Maximum Framerate (fps) | 20 fps / 16 MP |
| Streaming Capability | Multiple streaming up to 5 profiles |
| Operational | |
| Backlight Compensation | WDR, SSDR, BLC |
| WDR (Wide Dynamic Range) | 120 dB |
| Digital Noise Reduction | SSNR 5 (2D+3D) |
| Digital Image Stabilization | N/A |
| Defog | N/A |
| Motion Detection | Yes |
| Privacy Masking | Yes |
| Image Rotation | Image flip, Image mirror |
| Analytics | |
| Auto tracking | N/A |
| AI Object Classification | N/A |
| AI Analytics | N/A |
| Intelligent Video Analytics | Directional detection, Motion detection, Appeared object, Disappeared object, Enter to area, Exit from area, Tampering, Virtual line, Audio detection, Heat map |
| Facial Analytics | N/A |
| Dedicated Application | N/A |
| Interface | |
| Control Interface | N/A |
| Video Interface | Micro USB |
| Edge Storage | MicroSD, MicroSDHC, MicroSDXC |
| Memory Card Slot | 2 slot |
| Audio | |
| Audio Input | 1 |
| Audio Output | 1 |
| Built-in Microphone | N/A |
| Built-in Speaker | N/A |
| Audio Communication | Two-way audio |
| Alarm | |
| Alarm Input | 0, 1, 2 |
| Alarm Output | 0, 1, 2 |
| PIR Sensor | N/A |
| Light Warning | N/A |
| Network | |
| Ethernet | RJ-45 10/100/1000 BASE-T |
| Wireless LAN | N/A |
| Mobile Broadband and GNSS | N/A |
| API (Application Programming Interface) | ONVIF profile G, ONVIF profile S, ONVIF profile T, SUNAPI (HTTP API) |
| Network Storage | Network Optix Nx Witness, Genetec Omnicast, Milestone XProtect, Wisenet WAVE, Wisenet SSM, Wisenet NVR, Wisenet Hybrid DVR |
| Mobile and Desktop Applications | Nx Witness Mobile, Genetec Mobile, XProtect Mobile, Wisenet WAVE, Wisenet SSM, Wisenet mobile |
| Environmental | |
| Operating Temperature | -50°C ~ 60°C |
| Humidity | < 90% |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Electrical | |
| Input Voltage | 12 V DC, PoE+ (IEEE 802.3at) |
| Max Power Consumption | 20.5 W (12 V DC), 23.5 W (PoE+) |
| Mechanical | |
| Dimensions | Ø 253.0 x 170.0 mm |
| Net Weight | 2.90 |
| Wiper | N/A |
| Casing Material | Aluminium |
| Casing Color | White, RAL9003 |
| Certification | |
| Certificates | CE, NDAA |
| Package | |
| Package Contents | Quick guide |
| Related Accessory | SBP-250HMW, SBP-300WMW1, SBP-390WMW2, SBP-300BW1, SBP-300NBW, SBP-300CMW1, SBP-300PM1, SBP-300KMW1, SBP-300LMW |
| Link to Manufacturer | www.hanwhavision.com |
| Notes | N/A |
Download firmware:
You can always find the current firmware on the manufacturer's official website www.hanwhavision.com
In the search section, you need to enter the name of the camera and find the exact model. You will then search for the Download - Firmware tab.
In case of questions, please contact our technical support: technika@gemtech.eu
Phone number: 00421 52 7897891.
