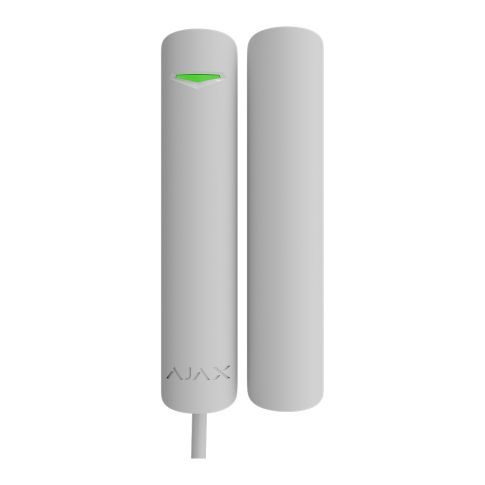

DoorProtect G3 Fibra White • Ajax
SKU
AJAX.DP.G3.FBR.W
Warranty:
24 months
Availability:
Magnetic contact with shock detector and tilt sensor
| Content | |
| Performance | |
| Communication | Wired |
|---|---|
| Installation Environment | Indoor |
| Compatibility | Hub Hybrid (2G), Hub Hybrid (4G) |
| Sensing Element | Magnetic reed switch, Accelerometer |
| Detection Technology | Shock detector, Magnetic contact |
| Detection Range / Coverage | N/A |
| Detection Zones | N/A |
| Detection Angle | N/A |
| PIR Lens Type | N/A |
| Activation Threshold | N/A |
| Notification Type | N/A |
| Siren Volume | N/A |
| Alarm Period | N/A |
| Alarm Logic | N/A |
| Detectable Speed | N/A |
| Sensitivity | Adjustable, 3 levels |
| Walk Test | N/A |
| Microwave frequency | N/A |
| Alarm Relay Output | N/A |
| EOL Resistors | N/A |
| Anti-masking | N/A |
| Anti-Sabotage and Tampering | Protection against spoofing, Tamper alarm |
| Warm-up Period | N/A |
| RFI Protection | N/A |
| Temperature Compensation / Sensor | N/A |
| Installation Height | N/A |
| Pet Immunity | N/A |
| Pet Immunity | N/A |
| Communication Technology | |
| Radio Technologies | N/A |
| Communication Range | 2000 m |
| Communication Type | Two-way |
| Operating Frequencies | N/A |
| Maximum effective radiated power | N/A |
| Encryption | N/A |
| Rolling Code / Frequency Hopping | N/A |
| Video | |
| Video Verification | |
| Camera Lens | |
| Camera Angle | |
| Camera Resolution (max) | |
| Frame Rate (max) | |
| Illumination | |
| Wireless | |
| Environmental | |
| Operating Temperature | -10°C ~ 40°C |
| Humidity | < 75% |
| Ingress Protection | IP50 |
| Electrical | |
| Input Voltage | 24 V DC, 5 ~ 30 V DC |
| Power Consumption | 120 µA (Standby), 2 mA |
| Battery | N/A |
| Battery Life | N/A |
| Mechanical | |
| Dimensions | 102 x 21.0 x 19.2 mm |
| Net Weight | 0.062 |
| Casing material | Plastic |
| Casing Color | White |
| Mounting Type | Wall mounting |
| Certification | |
| Certificates | CE, EN 50131-1, EN 50131-2-6, Grade 3 |
| Package | |
| Package Contents | Quick start guide, 2x magnets |
| Related Accessory | Hub Hybrid (2G), Hub Hybrid (4G) |
| Link to Manufacturer | www.ajax.systems |
| Notes | N/A |
