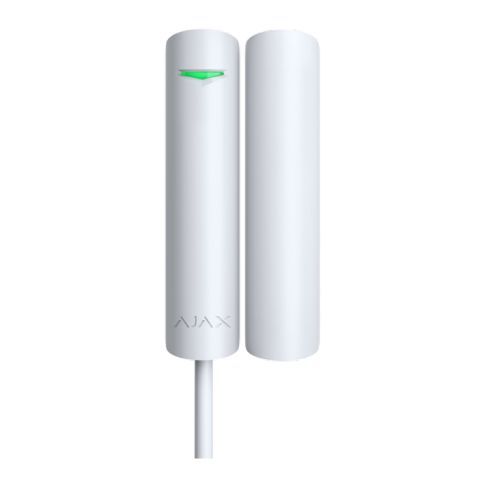

DoorProtect Fibra White • Ajax
SKU
AJAX.DP.FBR.W
Warranty:
24 months
Availability:
Magnetic contact
| Content | |
| Performance | |
| Communication | Wired |
|---|---|
| Installation Environment | Indoor |
| Compatibility | Hub Hybrid (2G), Hub Hybrid (4G) |
| Sensing Element | Magnetic reed switch |
| Detection Technology | Magnetic |
| Detection Range / Coverage | 0.01 ~ 0.02 m |
| Detection Range / Coverage | 0.02 |
| Detection Zones | N/A |
| Detection Angle | N/A |
| PIR Lens | N/A |
| Activation Threshold | N/A |
| Notification Type | N/A |
| Siren Volume | N/A |
| Alarm Period | N/A |
| Alarm Type | N/A |
| Motion Detection Speed | N/A |
| Sensitivity | N/A |
| Self Test | Remote setting and testing |
| Walk Test | N/A |
| Microwave frequency | N/A |
| Solid State Relay | N/A |
| Separated Alarm & Tamper Relays | N/A |
| EOL Resistors | N/A |
| Creep Zone | N/A |
| Anti-masking | N/A |
| Anti-masking | N/A |
| Anti-Sabotage and Tampering | Protection against forgery, Tampering alarm |
| Pulse Counter | N/A |
| Warm-up Period | N/A |
| RFI Protection | N/A |
| Temperature Compensation / Sensor | Temperature sensor |
| Digital Analysis | N/A |
| Installation Height | N/A |
| Pet Immunity | N/A |
| Pet Immunity | N/A |
| Communication Technology | |
| Radio Technologies | N/A |
| Communication Range | 2000 m |
| Communication Type | Two-way |
| Operating Frequencies | N/A |
| Maximum effective radiated power | N/A |
| Encryption | N/A |
| Rolling Code / Frequency Hopping | N/A |
| Video | |
| Video Verification | N/A |
| Camera Lens | N/A |
| Camera Angle | N/A |
| Camera Resolution (max) | N/A |
| Frame Rate (max) | N/A |
| Illumination | N/A |
| Wireless | N/A |
| Environmental | |
| Operating Temperature | -10°C ~ 40°C |
| Humidity | < 75% |
| Ingress Protection | IP50 |
| Electrical | |
| Input Voltage | 24 V DC, 5 ~ 30 V DC |
| Power Consumption | 23 mW |
| Battery | N/A |
| Battery Life | N/A |
| Mechanical | |
| Dimensions | 90.5 x 21.0 x 18.5 mm |
| Net Weight | 0.05 |
| Material | ABS |
| Color | White |
| Mounting Type | Window, Door |
| Certification | |
| Certificates | CE, EN 50131-1, EN 50131-2-6, Grade 2 |
| Package | |
| Package Contents | 2x magnets, Quick start guide |
| Link to Manufacturer | www.ajax.systems |
| Notes | N/A |
