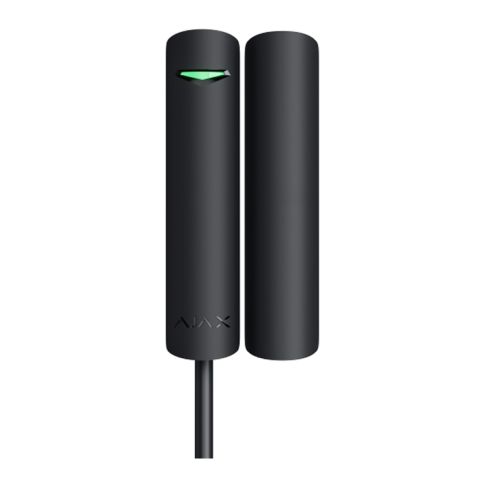

DoorProtect Fibra Black • Ajax
Content
|
Performance
|
Communication |
Wired
|
Installation Environment |
Indoor
|
Compatibility |
Hub Hybrid (2G), Hub Hybrid (4G)
|
Sensing Element |
Magnetic reed switch
|
Detection Technology |
Magnetic
|
Detection Range / Coverage |
0.01 ~ 0.02 m
|
Detection Range / Coverage |
0.02
|
Detection Zones |
N/A
|
Detection Angle |
N/A
|
PIR Lens |
N/A
|
Activation Threshold |
N/A
|
Notification Type |
N/A
|
Siren Volume |
N/A
|
Alarm Period |
N/A
|
Alarm Type |
N/A
|
Motion Detection Speed |
N/A
|
Sensitivity |
N/A
|
Self Test |
Remote setting and testing
|
Walk Test |
N/A
|
Microwave frequency |
N/A
|
Solid State Relay |
N/A
|
Separated Alarm & Tamper Relays |
N/A
|
EOL Resistors |
N/A
|
Creep Zone |
N/A
|
Anti-masking |
N/A
|
Anti-masking |
N/A
|
Anti-Sabotage and Tampering |
Protection against forgery, Tampering alarm
|
Pulse Counter |
N/A
|
Warm-up Period |
N/A
|
RFI Protection |
N/A
|
Temperature Compensation / Sensor |
Temperature sensor
|
Digital Analysis |
N/A
|
Installation Height |
N/A
|
Pet Immunity |
N/A
|
Pet Immunity |
N/A
|
Communication Technology
|
Radio Technologies |
N/A
|
Communication Range |
2000 m
|
Communication Type |
Two-way
|
Operating Frequencies |
N/A
|
Maximum effective radiated power |
N/A
|
Encryption |
N/A
|
Rolling Code / Frequency Hopping |
N/A
|
Video
|
Video Verification |
N/A
|
Camera Lens |
N/A
|
Camera Angle |
N/A
|
Camera Resolution (max) |
N/A
|
Frame Rate (max) |
N/A
|
Illumination |
N/A
|
Wireless |
N/A
|
Environmental
|
Operating Temperature |
-10°C ~ 40°C
|
Humidity |
< 75%
|
Ingress Protection |
IP50
|
Electrical
|
Input Voltage |
24 V DC, 5 ~ 30 V DC
|
Power Consumption |
23 mW
|
Battery |
N/A
|
Battery Life |
N/A
|
Mechanical
|
Dimensions |
90.5 x 21.0 x 18.5 mm
|
Net Weight |
0.05
|
Material |
ABS
|
Color |
Black
|
Mounting Type |
Window, Door
|
Certification
|
Certificates |
CE, EN 50131-1, EN 50131-2-6, Grade 2
|
Package
|
Package Contents |
2x magnets, Quick start guide
|
Link to Manufacturer |
www.ajax.systems
|
Notes |
N/A
|
