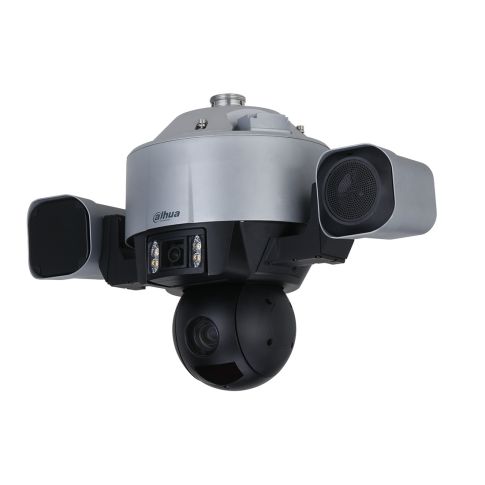

SDT5X425-4Z4-FAJG-PV-0832 • Dahua
What is WizMind?
Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, IVSS, thermal and software platform that adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for...
| Content | |
| Camera | |
| Image Sensor Type | Progressive scan CMOS |
|---|---|
| Image Sensor Size | 2x 1/2.8" |
| Day and Night Mode | 2x True day / night ICR |
| Minimum Illumination (Color) | 0.001 lux (Panoramic), 0.001 lux (SD) |
| Minimum Illumination (B/W) | 0.0001 lux (Panoramic), 0.0001 lux (SD) / 0 lux (LED) |
| Low Light Technology | Starlight |
| Color Technology | Dual light |
| Illumination | Warm LED, Smart IR LED |
| Viewable Length | 30 m, 100 m |
| Lens | |
| Lens Type | Zoom lens, Motorized varifocal lens |
| Focal Length | 5.4 ~ 135 mm, 8 ~ 32 mm |
| Zoom Ratio | 4x, 25x |
| Field of View (H) | 42° ~ 15° (Panoramic), 58° ~ 3.5° (SD) |
| Iris Control | DC auto iris |
| LiDAR | N/A |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 360° endless / 0° ~ 30° (Panoramic), 0° ~ 305° / -10° ~ 180° (Detail) |
| Pan / Tilt Speed | Manual: 0:1° ~ 100°/s | 0.1° ~ 25°/s, 0.1° ~ 400°/s | 0.1° ~ 200°/s, Preset: 100°/s | 50°/s, 360°/s | 200°/s |
| Video | |
| Video Compression | H.265, H.264, M-JPEG |
| Smart / Wise / Zip Streaming | Smart streaming |
| Maximum Resolution | 2x 4 MP / 2x 2688 x 1520 |
| Maximum Framerate (fps) | 30 fps / 4 MP (Panoramic), 30 fps / 4 MP (SD) |
| Streaming Capability | Triple streaming |
| Operational | |
| Backlight Compensation | WDR, HLC, BLC |
| WDR (Wide Dynamic Range) | 120 dB |
| Digital Noise Reduction | 2D / 3D DNR |
| Digital Image Stabilization | N/A |
| Defog | Defog |
| Motion Detection | Yes |
| Privacy Masking | Yes |
| Image Rotation | Image flip |
| Analytics | |
| Auto tracking | N/A |
| AI Object Classification | Vehicle detection, License plate detection, Automatic number-plate recognition (ANPR) |
| AI Analytics | Illegal parking |
| Intelligent Video Analytics | Motion detection |
| Facial Analytics | N/A |
| Dedicated Application | Automatic number-plate recognition (ANPR), Vehicle make, Vehicle color, Vehicle class |
| Interface | |
| Control Interface | N/A |
| Video Interface | N/A |
| Edge Storage | MicroSD |
| Memory Card Slot | 1 slot |
| Audio | |
| Audio Input | 1 |
| Audio Output | 1 |
| Built-in Microphone | N/A |
| Built-in Speaker | Yes |
| Audio Communication | Two-way audio |
| Alarm | |
| Alarm Input | 2 |
| Alarm Output | 1 |
| PIR Sensor | N/A |
| Light Warning | N/A |
| Network | |
| Ethernet | RJ-45 10/100 BASE-T |
| Wireless LAN | N/A |
| Mobile Broadband and GNSS | N/A |
| API (Application Programming Interface) | ONVIF, CGI |
| Network Storage | Network Optix Nx Witness, Milestone XProtect, Dahua DSS Pro, Dahua NVR, Dahua Hybrid DVR |
| Mobile and Desktop Applications | Nx Witness Mobile, XProtect Mobile, DMSS, DSS Agile |
| Environmental | |
| Operating Temperature | -40°C ~ 70°C |
| Humidity | < 95% |
| Ingress Protection | IP67 |
| Vandal Resistance | N/A |
| Electrical | |
| Input Voltage | 36 V DC, PoE++ (High PoE) |
| Max Power Consumption | 23.5 W, 45 W (LED) |
| Mechanical | |
| Dimensions | 565.0 x 280.0 x 385.0 mm |
| Net Weight | 10.90 |
| Wiper | N/A |
| Casing Material | Metal |
| Casing Color | Black, Silver |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | Power supply, Wall mount, Quick start guide |
| Related Accessory | PFA150-SG, PFB300C-SG |
| Link to Manufacturer | www.dahuasecurity.com |
| Notes | N/A |
Firmware download:
You can find the current firmware on the official website of the manufacturer www.dahuasecurity.com.
In the upper right corner of the search section, you need to enter the name of the camera and find the exact model. Then look for the Firmware tab. Several firmware may be listed for each product. If they have the same name and differ only in the letters PN or NP, choose firmware with the PAL standard, and therefore PN.
If you do not want to upgrade the firmware yourself, please contact our technical support: technika@gemtech.eu
Or call the phone number: 052 7897891.
Popular tools:
ConfigTool
ConfigTool 5.1 integrates ConfigTool Batch Mode, ACS Config, VDP Config, ARC Config. lt supports Dahua devices'information check device initalization, single/batch lP modification, parameter configuration, password reset, firmware upgrade, device reset, time calibration, CGl.
Update time：2023-06-25 13:44:25
Version：V5.1.2
SmartPSS Lite
The SmartPSS Lite Client Software is designed to configure and manage Dahua devices such as IP cameras, recorders (NVRs, XVRs), access control devices (ASIs, ASCs, ASRs), attendance management devices (ASAs), and video intercom devices (VTOs, VTHs, VTSs).
Update time：04.02.2024
Version：V1.3.5
SmartPSS Lite Mac
The SmartPSS Lite Client Software is designed to configure and manage Dahua devices such as IP cameras, recorders (NVRs, XVRs), access control devices (ASIs, ASCs, ASRs), attendance management devices (ASAs), and video intercom devices (VTOs, VTHs, VTSs).
Update time：10.12.2024
Version：V1.003
If you need more help, please contact our technical support: support@gemtech.eu
Or call the phone number: 00421 52 7897891.
