Mouse 02/P • AMC
SKU
AMC.Mouse02P
Warranty:
24 months
Availability:

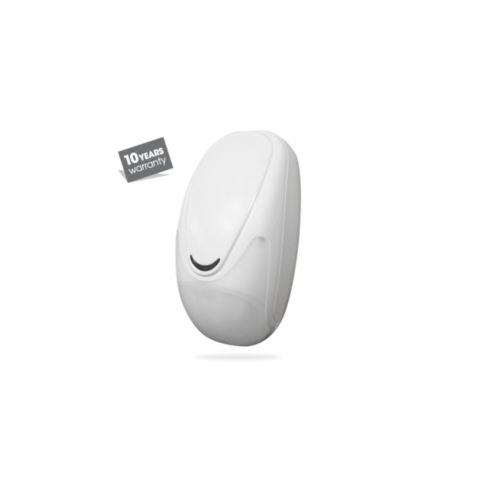

PIR & MW detector with anti-masking, EOL resistors and pet immunity
| Content | |
| Performance | |
| Communication | Wired |
|---|---|
| Installation Environment | Indoor |
| Compatibility | K series, K series V, X series, X series V, XR800, XR800 V |
| Sensing Element | PIR sensor, Microwave sensor |
| Detection Technology | Motion |
| Detection Range / Coverage | 7 ~ 15 m |
| Detection Range / Coverage | 15 |
| Detection Zones | 29 patterns |
| Detection Angle | 90° |
| PIR Lens | N/A |
| Activation Threshold | N/A |
| Notification Type | N/A |
| Siren Volume | N/A |
| Alarm Period | 2 s |
| Alarm Type | AND |
| Motion Detection Speed | N/A |
| Sensitivity | N/A |
| Self Test | Self test |
| Walk Test | Walk test |
| Microwave frequency | 9.3 GHz, 9.9 GHz, 10.5 GHz |
| Solid State Relay | Yes |
| Separated Alarm & Tamper Relays | N/A |
| EOL Resistors | Yes |
| Creep Zone | Yes |
| Anti-masking | Anti-masking |
| Anti-masking | Yes |
| Anti-Sabotage and Tampering | Anti-opening tamper |
| Pulse Counter | Yes |
| Warm-up Period | 60 s |
| RFI Protection | 30 V/m |
| Temperature Compensation / Sensor | Temperature compensation |
| Digital Analysis | Yes |
| Installation Height | 2.0 m |
| Pet Immunity | Pet immunity up to 15 kg |
| Pet Immunity | Yes |
| Communication Technology | |
| Radio Technologies | N/A |
| Communication Range | N/A |
| Communication Type | N/A |
| Operating Frequencies | N/A |
| Maximum effective radiated power | N/A |
| Encryption | AES |
| Rolling Code / Frequency Hopping | N/A |
| Video | |
| Video Verification | N/A |
| Camera Lens | N/A |
| Camera Angle | N/A |
| Camera Resolution (max) | N/A |
| Frame Rate (max) | N/A |
| Illumination | N/A |
| Wireless | N/A |
| Environmental | |
| Operating Temperature | -10°C ~ 40°C |
| Humidity | N/A |
| Ingress Protection | N/A |
| Electrical | |
| Input Voltage | 9.5 ~ 15 V DC |
| Power Consumption | 24 mA (standby), 30 mA (alarm) |
| Battery | N/A |
| Battery Life | N/A |
| Mechanical | |
| Dimensions | 110.0 x 60.0 x 46.0 mm |
| Net Weight | 0.18 |
| Material | ABS |
| Color | White |
| Mounting Type | Wall, Ceiling as option |
| Certification | |
| Certificates | CE, EN 50131-2-4 Grade 2, Class 2 |
| Package | |
| Package Contents | Installation manual |
| Link to Manufacturer | www.amcelettronica.com/en |
| Notes | N/A |
| mageworx-dynamic-options | |
