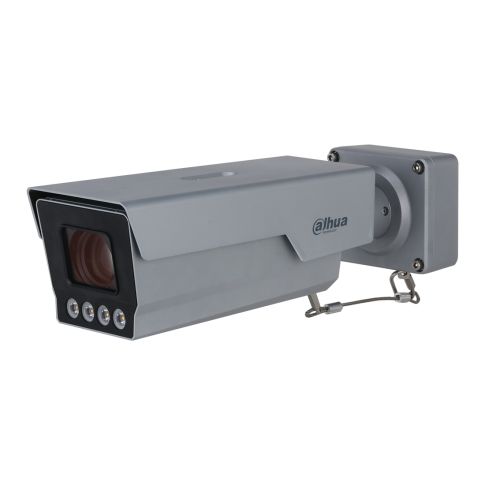

ITC431-RW1F-IRL8 • Dahua
What is WizMind?
Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, IVSS, thermal and software platform that adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for...
| Content | |
| Video | |
| Image Sensor Type | Progressive scan CMOS |
|---|---|
| Image Sensor Size | 1/1.8" |
| Minimum Illumination (Color) | 0.0001 lux |
| Minimum Illumination (B/W) | 0 lux (IR LED) |
| Low Light Technology | Starlight |
| Color Technology | N/A |
| Lens | |
| Lens Type | Motorized varifocal lens |
| Focal Length | 10 ~ 50 mm |
| Zoom Ratio | 10x |
| Field of View (H) | 40.8° ~ 9.4° |
| Iris Control | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | N/A |
| Operational | |
| Illumination | Smart IR LED |
| Viewable Length | 30 m |
| Day and Night Mode | True day / night ICR |
| Backlight Compensation | WDR, HLC, BLC |
| WDR (Wide Dynamic Range) | 140 dB |
| Digital Noise Reduction | 3D DNR |
| Digital Image Stabilization | N/A |
| Defog | Defog |
| Motion Detection | Yes |
| Privacy Masking | N/A |
| Image Rotation | N/A |
| Control Interface | 2x RS-485, 2x RS-232 |
| Video Interface | N/A |
| Analytics | |
| AI Object Classification | Vehicle detection, Vehicle attributes, License plate detection, Automatic number-plate recognition (ANPR) |
| AI Analytics | Traffic flow data, Vehicle violation |
| Intelligent Video Analytics | Motion detection, Tampering |
| Facial Analytics | N/A |
| Dedicated Application | Automatic number-plate recognition (ANPR), Vehicle make, Vehicle color, Vehicle class |
| ANPR | |
| Maximum Speed Number Plate Recognition | 180 km/h |
| Lane Coverage | 2 lines |
| Encryption | N/A |
| Alarm | |
| Alarm Input | 3 |
| Alarm Output | 2 |
| PIR Sensor | N/A |
| Light Warning | N/A |
| Audio | |
| Audio Input | 1 |
| Audio Output | 1 |
| Built-in Microphone | N/A |
| Built-in Speaker | N/A |
| Audio Communication | Two-way audio |
| Network | |
| Ethernet | RJ-45 10/100/1000 BASE-T |
| Wireless LAN | N/A |
| Mobile Broadband and GNSS | N/A |
| Video Compression | H.265, H.264, M-JPEG |
| Smart / Wise / Zip Streaming | N/A |
| Maximum Resolution | 4 MP / 2688 x 1520 |
| Maximum Framerate (fps) | 30 fps / 4 MP |
| Streaming Capability | Dual streaming |
| Edge Storage | MicroSD |
| Memory Card Slot | 1 slot |
| API (Application Programming Interface) | ONVIF profile G, ONVIF profile S, ONVIF profile T |
| Network Storage | Network Optix Nx Witness, Milestone XProtect, Dahua DSS Pro, Dahua NVR, Dahua Hybrid DVR |
| Mobile and Desktop Applications | Nx Witness Mobile, XProtect Mobile, DMSS, DSS Agile, Traffic Scanner, FF Data Factory |
| Environmental | |
| Operating Temperature | -40°C ~ 65°C |
| Humidity | < 90% |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Electrical | |
| Input Voltage | 12 ~ 36 V DC |
| Max Power Consumption | 13 W |
| Mechanical | |
| Dimensions | 466.4 x 135.8 x 134.1 mm |
| Net Weight | 3.90 |
| Casing Material | Aluminium, Plastic |
| Casing Color | Silver |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | Quick start guide |
| Related Accessory | PFA150-V2, 8018 |
| Link to Manufacturer | www.dahuasecurity.com |
| Notes | N/A |
| Display | |
| Pitch (mm) | N/A |
| Display Resolution | N/A |
| Display Size (mm) | N/A |
Firmware download:
You can find the current firmware on the official website of the manufacturer www.dahuasecurity.com.
In the upper right corner of the search section, you need to enter the name of the camera and find the exact model. Then look for the Firmware tab. Several firmware may be listed for each product. If they have the same name and differ only in the letters PN or NP, choose firmware with the PAL standard, and therefore PN.
If you do not want to upgrade the firmware yourself, please contact our technical support: technika@gemtech.eu
Or call the phone number: 052 7897891.
Popular tools:
ConfigTool
ConfigTool 5.1 integrates ConfigTool Batch Mode, ACS Config, VDP Config, ARC Config. lt supports Dahua devices'information check device initalization, single/batch lP modification, parameter configuration, password reset, firmware upgrade, device reset, time calibration, CGl.
Update time：2023-06-25 13:44:25
Version：V5.1.2
SmartPSS Lite
The SmartPSS Lite Client Software is designed to configure and manage Dahua devices such as IP cameras, recorders (NVRs, XVRs), access control devices (ASIs, ASCs, ASRs), attendance management devices (ASAs), and video intercom devices (VTOs, VTHs, VTSs).
Update time：04.02.2024
Version：V1.3.5
SmartPSS Lite Mac
The SmartPSS Lite Client Software is designed to configure and manage Dahua devices such as IP cameras, recorders (NVRs, XVRs), access control devices (ASIs, ASCs, ASRs), attendance management devices (ASAs), and video intercom devices (VTOs, VTHs, VTSs).
Update time：10.12.2024
Version：V1.003
