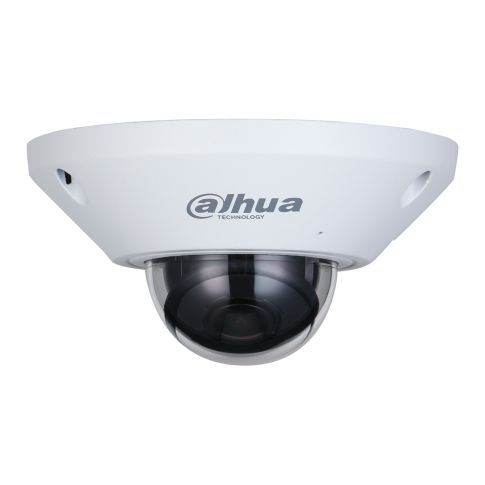

IPC-EB5541-M12-DAE-SA • Dahua
What is WizMind?
Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, IVSS, thermal and software platform that adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for...
| Content | |
| Camera | |
| Image Sensor Type | Progressive scan CMOS |
|---|---|
| Image Sensor Size | 1/2.7" |
| Day and Night Mode | Electronic day / night |
| Minimum Illumination (Color) | 0.006 lux |
| Minimum Illumination (B/W) | 0.006 lux |
| Low Light Technology | N/A |
| Color Technology | N/A |
| Illumination | N/A |
| Viewable Length | N/A |
| Lens | |
| Lens Type | Fixed lens |
| Focal Length | 1.4 mm |
| Zoom Ratio | N/A |
| Field of View (H) | 180° |
| Iris Control | Fixed iris |
| LiDAR | N/A |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 355° / 0° ~ 55° / 0° ~ 360° |
| Pan / Tilt Speed | N/A |
| Video | |
| Video Compression | H.265, H.264, M-JPEG |
| Smart / Wise / Zip Streaming | Smart streaming |
| Maximum Resolution | 5 MP / 2592 x 1944 |
| Maximum Framerate (fps) | 30 fps / 5 MP |
| Streaming Capability | Triple streaming |
| Operational | |
| Backlight Compensation | WDR, HLC, SSA, BLC |
| WDR (Wide Dynamic Range) | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Digital Image Stabilization | N/A |
| Defog | N/A |
| Motion Detection | Yes |
| Privacy Masking | Yes |
| Image Rotation | N/A |
| Analytics | |
| Auto tracking | N/A |
| AI Object Classification | N/A |
| AI Analytics | N/A |
| Intelligent Video Analytics | Motion detection, Tampering, Audio detection, Intrusion, Tripwire, Scene change, People counting, Heat map |
| Facial Analytics | N/A |
| Dedicated Application | N/A |
| Interface | |
| Control Interface | N/A |
| Video Interface | N/A |
| Edge Storage | MicroSD |
| Memory Card Slot | 1 slot |
| Audio | |
| Audio Input | N/A |
| Audio Output | N/A |
| Built-in Microphone | Yes |
| Built-in Speaker | N/A |
| Audio Communication | One-way audio |
| Alarm | |
| Alarm Input | N/A |
| Alarm Output | N/A |
| PIR Sensor | N/A |
| Light Warning | N/A |
| Network | |
| Ethernet | M12 10/100 BASE-T |
| Wireless LAN | N/A |
| Mobile Broadband and GNSS | N/A |
| API (Application Programming Interface) | ONVIF profile G, ONVIF profile S, ONVIF profile T, CGI |
| Network Storage | Network Optix Nx Witness, Milestone XProtect, Dahua DSS Pro, Dahua NVR, Dahua Hybrid DVR |
| Mobile and Desktop Applications | Nx Witness Mobile, XProtect Mobile, DMSS, DSS Agile |
| Environmental | |
| Operating Temperature | -30°C ~ 55°C |
| Humidity | < 95% |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Electrical | |
| Input Voltage | PoE (IEEE 802.3af) |
| Max Power Consumption | 4.7 W, 6 W |
| Mechanical | |
| Dimensions | Ø 110.0 x 62.0 mm |
| Net Weight | 0.41 |
| Wiper | N/A |
| Casing Material | Metal |
| Casing Color | White |
| Certification | |
| Certificates | CE, EN 50155 |
| Package | |
| Package Contents | Quick start guide |
| Related Accessory | PFA136, PFB203W, PFA152-E, PFA109, PFB220C |
| Link to Manufacturer | www.dahuasecurity.com |
| Notes | N/A |
Firmware download:
You can find the current firmware on the official website of the manufacturer www.dahuasecurity.com.
In the upper right corner of the search section, you need to enter the name of the camera and find the exact model. Then look for the Firmware tab. Several firmware may be listed for each product. If they have the same name and differ only in the letters PN or NP, choose firmware with the PAL standard, and therefore PN.
If you do not want to upgrade the firmware yourself, please contact our technical support: technika@gemtech.eu
Or call the phone number: 052 7897891.
