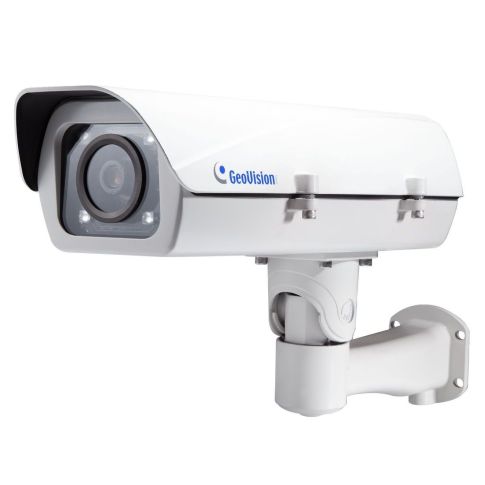

GV-LPC2210 • GeoVision
| Content | |
| Video | |
| Image Sensor Type | Progressive scan super low lux CMOS |
|---|---|
| Image Sensor Size | 1/2.8" |
| Minimum Illumination (Color) | N/A |
| Minimum Illumination (B/W) | 0 lux (IR LED) |
| Low Light Technology | Super Low Lux |
| Color Technology | N/A |
| Lens | |
| Lens Type | Motorized varifocal lens |
| Focal Length | 9 ~ 22 mm |
| Zoom Ratio | 2.5x |
| Field of View (H) | 38° ~ 18° |
| Iris Control | P-Iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 270° / 0° ~ 70° |
| Operational | |
| Illumination | Intelligent IR LED |
| Viewable Length | 20 m |
| Color Mode | Color mode |
| Backlight Compensation | BLC |
| WDR (Wide Dynamic Range) | N/A |
| Digital Noise Reduction | 3D DNR |
| Digital Image Stabilization | N/A |
| Defog | Defog |
| Motion Detection | Yes |
| Privacy Masking | Yes |
| Image Rotation | Image flip, Image mirror, Image rotation |
| Control Interface | N/A |
| Video Interface | CVBS |
| Analytics | |
| AI Object Classification | N/A |
| AI Analytics | N/A |
| Intelligent Video Analytics | Motion detection, Tampering |
| Business Intelligence | N/A |
| Facial Analytics | N/A |
| Pre-installed Application | N/A |
| ANPR | |
| Maximum Speed Number Plate Recognition | 120 km/h |
| Lane Coverage | 2 lines |
| Alarm | |
| Alarm Input | 1 |
| Alarm Output | 1 |
| PIR Sensor | N/A |
| Light Warning | N/A |
| Audio | |
| Audio Input | 1 |
| Audio Output | 1 |
| Built-in Microphone | N/A |
| Built-in Speaker | N/A |
| Audio Communication | Two-way audio |
| Network | |
| Ethernet | RJ-45 10/100 BASE-T |
| Wireless LAN | N/A |
| Mobile Broadband & GNSS | N/A |
| Video Compression | H.264, M-JPEG |
| Smart / Wise / Zip Streaming | N/A |
| Maximum Resolution | 2 MP / 1920 x 1080 / Full HD 1080p |
| Maximum Framerate (fps) | 30 fps / 2 MP |
| Streaming Capability | Dual streaming |
| Edge Storage | N/A |
| Memory Card Slot | N/A |
| API (Application Programming Interface) | ONVIF profile S |
| Network Storage | Network Optix Nx Witness, GV-VMS, GV‐NVR, GV‐Hybrid DVR, GV‐Recording Server |
| Mobile & Desktop Applications | GV-ASManager, GV-Eye |
| Environmental | |
| Operating Temperature | -40°C ~ 50°C |
| Humidity | < 90% |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Electrical | |
| Input Voltage | 48 V DC, PoE++ (High PoE) |
| Power Consumption | 50 W |
| Mechanical | |
| Dimensions | 406.0 x 145.0 x 109.0 mm |
| Net Weight | 3.32 |
| Casing material | Aluminium |
| Casing Color | White |
| Certification | |
| Certificates | CE, NDAA |
| Package | |
| Package Contents | Power supply, Download guide, GV-ASManager software CD |
| Related Accessory | GV-Mount300-1, GV-Mount310-1, GV-Mount400-1, GV-Mount410-1 |
| Link to Manufacturer | www.geovision.com.tw |
| Notes | N/A |
| Display | |
| Pitch (mm) | N/A |
| Display Resolution | N/A |
| Display Size (mm) | N/A |
| mageworx-dynamic-options | |
Download firmware:
You can always find the current firmware on the manufacturer's official website www.geovision.com.tw
In the search section, you need to enter the name of the camera and find the exact model. You will then search for the Download - Firmware tab.
In case of questions, please contact our technical support: support@gemtech.eu
Phone number: 00421 52 7897891
Popular tools:
GV-IP Device Utility
GV-IP Device Utility detects any GeoVision devices within the same LAN. It allows you to quickly set the IP address, update firmware, export/import device settings for and reboot IP devices.
GV‐Edge Recording Manager
GV-Edge Recording Manger combines live monitoring and remote control of GeoVision IP devices and software into a single management interface.
