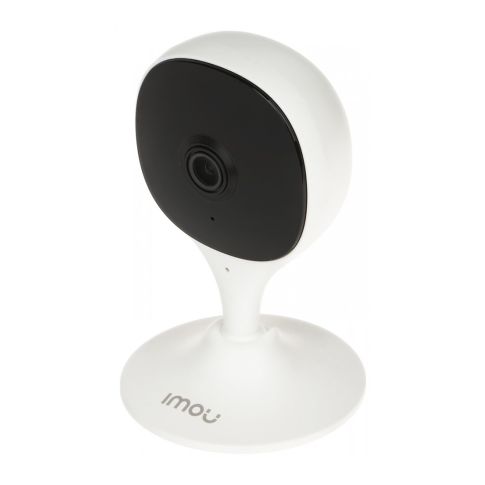

Cue 2 / IPC-C22EP-A • Dahua
| Content | |
| Video | |
| Image Sensor Type | Progressive scan CMOS |
|---|---|
| Image Sensor Size | 1/2.7" |
| Minimum Illumination (Color) | N/A |
| Minimum Illumination (B/W) | 0 lux (IR LED) |
| Low Light Technology | N/A |
| Color Technology | N/A |
| Lens | |
| Lens Type | Fixed lens |
| Focal Length | 2.8 mm |
| Zoom Ratio | N/A |
| Field of View (H) | 112° |
| Iris Control | Fixed iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | N/A |
| Operational | |
| Illumination | IR LED |
| Viewable Length | 10 m |
| Color Mode | True day / night ICR |
| Backlight Compensation | BLC |
| WDR (Wide Dynamic Range) | N/A |
| Digital Noise Reduction | N/A |
| Digital Image Stabilization | N/A |
| Defog | N/A |
| Motion Detection | Yes |
| Privacy Masking | N/A |
| Image Rotation | N/A |
| Control Interface | N/A |
| Video Interface | N/A |
| Analytics | |
| AI Object Classification | Person detection |
| AI Analytics | N/A |
| Intelligent Video Analytics | Motion detection |
| Business Intelligence | N/A |
| Facial Analytics | N/A |
| Pre-installed Application | N/A |
| Alarm | |
| Alarm Input | N/A |
| Alarm Output | N/A |
| PIR Sensor | N/A |
| Light Warning | N/A |
| Audio | |
| Audio Input | N/A |
| Audio Output | N/A |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Audio Communication | Two-way audio |
| Network | |
| Ethernet | N/A |
| Wireless LAN | Wi-Fi |
| Mobile Broadband & GNSS | N/A |
| Video Compression | H.265, H.264 |
| Smart / Wise / Zip Streaming | N/A |
| Maximum Resolution | 2 MP / 1920 x 1080 / Full HD 1080p |
| Maximum Framerate (fps) | 30 fps / 2 MP |
| Streaming Capability | Dual streaming |
| Edge Storage | MicroSD |
| Memory Card Slot | 1 slot |
| API (Application Programming Interface) | ONVIF |
| Network Storage | Dahua DSS Pro, Dahua NVR, Dahua Hybrid DVR, Dahua SmartPSS, Cloud |
| Mobile & Desktop Applications | gDMSS, iDMSS, DSS, Imou Life |
| Environmental | |
| Operating Temperature | -10°C ~ 45°C |
| Humidity | < 95% |
| Ingress Protection | N/A |
| Vandal Resistance | N/A |
| Electrical | |
| Input Voltage | 5 V DC |
| Power Consumption | 3.1 W |
| Mechanical | |
| Dimensions | 66.0 x 33.0 x 109.0 mm |
| Net Weight | 0.10 |
| Casing material | Plastic |
| Casing Color | White |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | Power supply, Quick start guide |
| Related Accessory | N/A |
| Link to Manufacturer | www.imoulife.com/en |
| Notes | N/A |
| mageworx-dynamic-options | |
Firmware download:
You can find the current firmware on the official website of the manufacturer www.dahuasecurity.com.
In the upper right corner of the search section, you need to enter the name of the camera and find the exact model. Then look for the Firmware tab. Several firmware may be listed for each product. If they have the same name and differ only in the letters PN or NP, choose firmware with the PAL standard, and therefore PN.
If you do not want to upgrade the firmware yourself, please contact our technical support: technika@gemtech.eu
Or call the phone number: 052 7897891.
Popular tools:
ConfigTool
ConfigTool 5.1 integrates ConfigTool Batch Mode, ACS Config, VDP Config, ARC Config. lt supports Dahua devices'information check device initalization, single/batch lP modification, parameter configuration, password reset, firmware upgrade, device reset, time calibration, CGl.
Update time：2023-06-25 13:44:25
Version：V5.1.2
SmartPSS Lite
The SmartPSS Lite Client Software is designed to configure and manage Dahua devices such as IP cameras, recorders (NVRs, XVRs), access control devices (ASIs, ASCs, ASRs), attendance management devices (ASAs), and video intercom devices (VTOs, VTHs, VTSs).
Update time：04.02.2024
Version：V1.3.5
