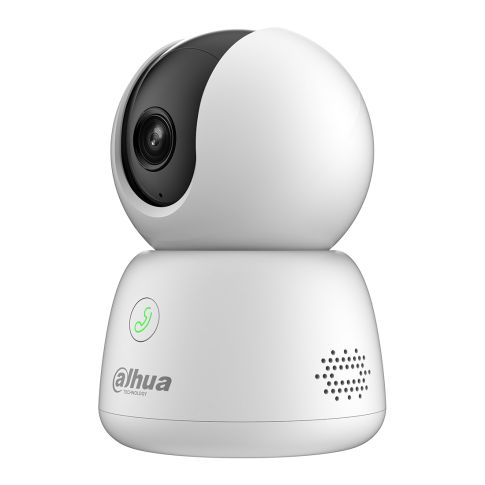

H5B • Dahua :: Security Technologies

Technical specification

Content
Camera
Image Sensor Type	Progressive scan CMOS
Image Sensor Size	1/3"
Day and Night Mode	True day / night ICR
Minimum Illumination (Color)	N/A
Minimum Illumination (B/W)	0 lux (IR LED)
Low Light Technology	N/A
Color Technology	N/A
Illumination	IR LED
Viewable Length	10 m
Lens
Lens Type	Fixed lens
Focal Length	3.6 mm
Zoom Ratio	N/A
Field of View (H)	74°
Iris Control	Fixed iris
LiDAR	N/A
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0° ~ 350° / -5° ~ 80°
Pan / Tilt Speed	N/A
Video
Video Compression	H.265
Smart / Wise / Zip Streaming	N/A
Maximum Resolution	5 MP / 2880 x 1620
Maximum Framerate (fps)	30 fps / 5 MP
Streaming Capability	Dual streaming
Operational
Backlight Compensation	Digital WDR
WDR (Wide Dynamic Range)	N/A
Digital Noise Reduction	N/A
Digital Image Stabilization	N/A
Defog	N/A
Motion Detection	Yes
Privacy Masking	Yes
Image Rotation	Image flip
Analytics
Auto tracking	Supported
AI Object Classification	Person detection, Pet detection
AI Analytics	N/A
Intelligent Video Analytics	Motion detection
Facial Analytics	N/A
Dedicated Application	N/A
Interface
Control Interface	N/A
Video Interface	N/A
Edge Storage	MicroSD
Memory Card Slot	1 slot
Audio
Audio Input	N/A
Audio Output	N/A
Built-in Microphone	Yes
Built-in Speaker	Yes
Audio Communication	Two-way audio
Alarm
Alarm Input	N/A
Alarm Output	N/A
PIR Sensor	N/A
Light Warning	N/A
Network
Ethernet	RJ-45 10/100 BASE-T
Wireless LAN	Wi-Fi
Mobile Broadband and GNSS	N/A
API (Application Programming Interface)	N/A
Network Storage	Network Optix Nx Witness, Dahua Cloud, Dahua NVR
Mobile and Desktop Applications	Nx Witness Mobile, DMSS
Environmental
Operating Temperature	-10°C ~ 45°C
Humidity	< 95%
Ingress Protection	N/A
Vandal Resistance	N/A
Electrical
Input Voltage	5 V DC
Max Power Consumption	1.9 W, 3.8 W (LED)
Mechanical
Dimensions	Ø 84.0 x 123.8 mm
Net Weight	0.21
Wiper	N/A
Casing Material	Plastic
Casing Color	White
Certification
Certificates	CE
Package
Package Contents	Power supply, Quick start guide
Related Accessory	N/A
Link to Manufacturer	www.dahuasecurity.com
Notes	N/A
mageworx-dynamic-options

Firmware

Firmware download:

You can find the current firmware on the official website of the manufacturer www.dahuasecurity.com.

In the upper right corner of the search section, you need to enter the name of the camera and find the exact model. Then look for the Firmware tab. Several firmware may be listed for each product. If they have the same name and differ only in the letters PN or NP, choose firmware with the PAL standard, and therefore PN.

Preview

If you do not want to upgrade the firmware yourself, please contact our technical support: technika@gemtech.eu
Or call the phone number: 052 7897891.

Software

Popular tools:

ConfigTool

ConfigTool 5.1 integrates ConfigTool Batch Mode, ACS Config, VDP Config, ARC Config. lt supports Dahua devices'information check device initalization, single/batch lP modification, parameter configuration, password reset, firmware upgrade, device reset, time calibration, CGl.

Update time：2023-06-25 13:44:25

Version：V5.1.2

SmartPSS Lite

The SmartPSS Lite Client Software is designed to configure and manage Dahua devices such as IP cameras, recorders (NVRs, XVRs), access control devices (ASIs, ASCs, ASRs), attendance management devices (ASAs), and video intercom devices (VTOs, VTHs, VTSs).

Update time：04.02.2024

Version：V1.3.5

SmartPSS Lite Mac

The SmartPSS Lite Client Software is designed to configure and manage Dahua devices such as IP cameras, recorders (NVRs, XVRs), access control devices (ASIs, ASCs, ASRs), attendance management devices (ASAs), and video intercom devices (VTOs, VTHs, VTSs).
