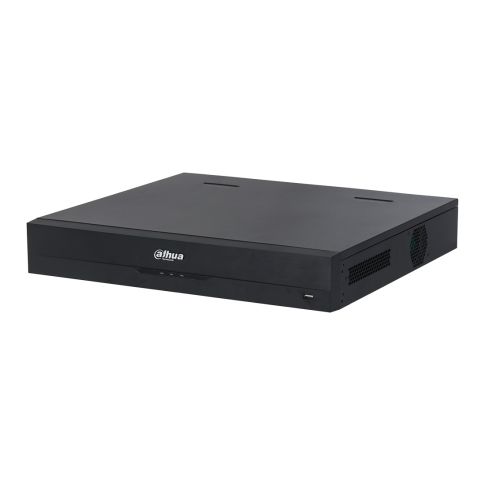

XVR5432L-I3 • Dahua
HDCVI Technology
HDCVI technology supports up to 4K ultra high definition resolution. With 4 times the pixels of 1080P, it presents a true-to-life image with impressive clarity that captures even the tiniest of details. As the very first technology to bring 4K-over-coax to the market, HDCVI comes with a complete product portfolio. The 4K box camera (DH-HAC-HF3805G) features Starlight capability and offers a full color image even in extreme low-light environments. The 4K IR bullet and dome cameras (DH-HAC-HFW3802E-Z & DH-HAC-HDBW3802E-Z) feature 120dB true WDR and long-distance IR range. The 4K multi-sensor camera(DH-HAC-PFW3601-A180) and fisheye camera (DH-HAC-EBW3802) capture a panoramic image which covers a wider monitoring area.
| Content | |
| System | |
| Operating System | Embedded Linux |
|---|---|
| Video | |
| Supported HD Signals | AHD, HDCVI, HD-TVI, CVBS |
| AHD Camera Inputs | 32 channels |
| CVI Camera Inputs | 32 channels |
| TVI Camera Inputs | 32 channels |
| SD / CVBS Camera Inputs | 32 channels |
| SDI Camera Inputs | N/A |
| IP Camera Inputs | 32 channels |
| Total Channels | 32 channels |
| Display | |
| Local Video Outputs | HDMI, VGA, BNC |
| Maximum Display Resolution | 4K UHD / 3840 x 2160 |
| Recording | |
| Video Compression | H.265, H.264 |
| Smart / Wise / Zip Streaming | Smart streaming |
| Recording Bandwidth | 128 Mbps |
| Recording Frame Rate of AHD Cameras | 20 fps @ 5 MP per channel, 25 fps @ 4 MP per channel |
| Recording Frame Rate of HDCVI Cameras | 20 fps @ 5 MP per channel, 25 fps @ 4 MP per channel |
| Recording Frame Rate of HD-TVI Cameras | 20 fps @ 5 MP per channel, 25 fps @ 4 MP per channel |
| Recording Frame Rate of SDI Cameras | N/A |
| Recording Frame Rate of SD Cameras | 25 fps @ 960H per channel |
| Max Recording Resolution of AHD Cameras | 5 MP |
| Max Recording Resolution of HDCVI Cameras | 5 MP |
| Max Recording Resolution of HD-TVI Cameras | 5 MP |
| Max Recording Resolution of SDI Cameras | N/A |
| Max Recording Resolution of SD Cameras | 960H |
| Max Recording Resolution of IP Cameras | 8 MP |
| Analytics by Recorder | |
| AI Object Classification | Face |
| Facial Analytics | Face recognition, Face detection |
| Search and Playback | |
| Simultaneous Playback | 16 channels |
| AI Search | Person, Face, Vehicle, SMD Plus, QuickPick 2.0, Face attributes |
| Storage | |
| Built-In Disk | N/A |
| Number of Internal Disks | 4x SATA |
| Hot Swap | N/A |
| Backup | |
| Backup | USB, eSATA, Network |
| DVD-RW | N/A |
| Alarm | |
| Alarm Inputs | 16 |
| Alarm Outputs | 6 |
| Audio | |
| Audio Inputs | 4 CH (BNC) |
| Audio Outputs | 1 CH (BNC) |
| Audio Communication | Two-way audio |
| Performance | |
| Easy Configuration | QR code scanning (P2P) |
| Fisheye Dewarping | N/A |
| Redundancy | N/A |
| Network | |
| Ethernet | 1x RJ-45 10/100/1000 BASE-T |
| Wireless Communication | N/A |
| Mobile & Desktop Applications | DSS, SmartPSS Lite, DMSS |
| Interface | |
| Video Inputs | 32x BNC (AHD / HDCVI / HD-TVI / CVBS) |
| Loop Outputs | N/A |
| HDMI | 2x HDMI |
| VGA | 1x VGA |
| Composite Output | 1x BNC |
| USB | 3x USB |
| eSATA | 1x eSATA |
| Serial Interface | 1x RS-485, 1x RS-232 |
| Communication Protocols | Dahua, AD, Lilin, Panasonic, Pelco-D/P, Philips, Samsung-T/E, Sony, Yaan |
| Environmental | |
| Operating Temperature | -10°C ~ 55°C |
| Humidity | < 90% |
| Electrical | |
| Input Voltage | 100 ~ 240 V AC |
| Power Consumption | 22 W |
| Mechanical | |
| Dimensions | 440.0 x 420.2 x 76.0 mm |
| Net Weight (kg) | 4.80 |
| Casing material | Metal |
| Casing Color | Black |
| Mounting Type | Desktop |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | Quick Start Guide |
| Related Accessory | N/A |
| Link to Manufacturer | www.dahuasecurity.com |
| Notes | Only a limited number of channels support video analysis. Please refer to the datasheet for detailed information on video analysis. |
Firmware download:
You can find the current firmware on the official website of the manufacturer www.dahuasecurity.com.
In the upper right corner of the search section, you need to enter the name of the camera and find the exact model. Then look for the Firmware tab. Several firmware may be listed for each product. If they have the same name and differ only in the letters PN or NP, choose firmware with the PAL standard, and therefore PN.
If you do not want to upgrade the firmware yourself, please contact our technical support: technika@gemtech.eu
Or call the phone number: 052 7897891.
Popular tools:
ConfigTool
ConfigTool 5.1 integrates ConfigTool Batch Mode, ACS Config, VDP Config, ARC Config. lt supports Dahua devices'information check device initalization, single/batch lP modification, parameter configuration, password reset, firmware upgrade, device reset, time calibration, CGl.
Update time：2023-06-25 13:44:25
Version：V5.1.2
SmartPSS Lite
The SmartPSS Lite Client Software is designed to configure and manage Dahua devices such as IP cameras, recorders (NVRs, XVRs), access control devices (ASIs, ASCs, ASRs), attendance management devices (ASAs), and video intercom devices (VTOs, VTHs, VTSs).
Update time：04.02.2024
Version：V1.3.5
SmartPSS Lite Mac
The SmartPSS Lite Client Software is designed to configure and manage Dahua devices such as IP cameras, recorders (NVRs, XVRs), access control devices (ASIs, ASCs, ASRs), attendance management devices (ASAs), and video intercom devices (VTOs, VTHs, VTSs).
Update time：10.12.2024
Version：V1.003
If you need more help, please contact our technical support: support@gemtech.eu
Or call the phone number: 00421 52 7897891.
