VOX/OUT • AMC
SKU
AMC.Vox/Out
Warranty:
24 months
Availability:

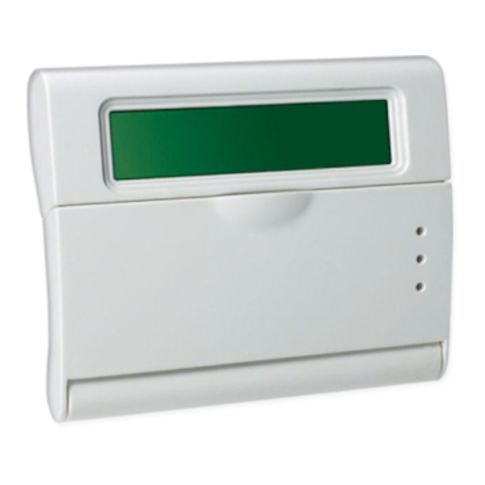

Speech and SMS dialler with integrated GPRS module and keyboard
| Content | |
| Performance | |
| Compatibility | K series, K series V, X series, X series V, XR800, XR800 V |
|---|---|
| Mobile Broadband | GPRS |
| GSM Frequency Bands | N/A |
| Ethernet | N/A |
| Wireless | N/A |
| Inputs | 0, 1, 2, 3, 4, 5 |
| Analog Inputs | N/A |
| Outputs | 0, 1, 2, 3, 4, 5 |
| Remote output control | SMS, Call, DTMF |
| Phone Numbers Associated to Input | 8 call / SMS |
| Phone Numbers Associated to Output | 200 call / SMS |
| Voice Recording Time | 20 |
| Remote Listening | Yes |
| Event Log | N/A |
| Programming Interface | SMS, Keyboard |
| CMS Communication Support | N/A |
| GSM Jammer Detection | N/A |
| Environmental | |
| Operating Temperature | 5°C ~ 40°C |
| Humidity | N/A |
| Electrical | |
| Input Voltage | 13.8 V DC |
| Power Consumption | 150 mA, 2000 mA |
| Mechanical | |
| Dimensions | 130.0 x 120.0 x 35.0 mm |
| Net Weight | 0.60 |
| Casing material | Polycarbonate |
| Casing Color | White |
| Mounting Type | Wall |
| Certification | |
| Certificates | EN 50136-1, EN 50136-2, Grade 2, Class II |
| Package | |
| Package Contents | Installation manual |
| Link to Manufacturer | www.amcelettronica.com/en |
| Notes | N/A |
Download:
AMC software launcher
Software for setting AMC control panel.
Default password: admin
If you need more help, please contact our technical support: support@gemtech.eu
Or call the phone number: 00421 52 7897891.
