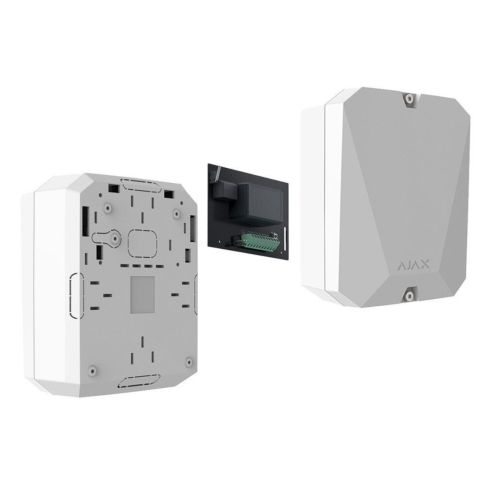

vhfBridge Jeweller White • Ajax
SKU
AJAX.VHF.W
Warranty:
24 months
Availability:
Module for connecting Ajax security systems to third-party VHF transmitters
| Content | |
| Performance | |
| Compatibility | Hub Hybrid (2G), Hub Hybrid (4G), Hub 2 (2G) Jeweller, Hub 2 (4G) Jeweller, Hub 2 Plus Jeweller, Hub Plus Jeweller, ReX 2 Jeweller, ReX Jeweller |
|---|---|
| Maximum Connected Devices | N/A |
| Input Lines | N/A |
| Output Lines | N/A |
| Contact Status | N/A |
| Event Types | |
| Recommended VHF Transmitters | Hawk VHF from FSK Electronics, TX750C from RDC, TR-41 from Puper |
| Anti-Sabotage and Tampering | Tampering alarm, Protecting against forgery, Jamming detection |
| Reader Credential | |
| Frequency | N/A |
| RF Option / Format | N/A |
| Radio Technology | |
| Radio Technologies | Jeweller |
| Communication Range | 1800 m |
| Communication Type | Two-way |
| Operating Frequencies | 868.0 ~ 868.6 MHz |
| Maximum effective radiated power | 20 mW |
| Encryption | AES 128 |
| Rolling Code / Frequency Hopping | Frequency hopping |
| Environmental | |
| Operating Temperature | -10°C ~ 40°C |
| Humidity | < 75% |
| Ingress Protection | IP50 |
| Electrical | |
| Input Voltage | 100 ~ 240 V AC, 12 V DC (backup) |
| Power Consumption | N/A |
| Backup Battery | 4 Ah, 7 Ah |
| Battery Life | 75 h |
| Mechanical | |
| Dimensions | 196.0 x 238.0 x 100.0 mm |
| Net Weight | 0.84 |
| Casing material | Plastic |
| Casing Color | White |
| Mounting Type | Wall mounting |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | Quick start guide, Casing |
| Related Accessory | Hub 2 (2G) Jeweller, Hub 2 (4G) Jeweller, Hub 2 Plus Jeweller, Hub Hybrid (2G), Hub Hybrid (4G), Hub Plus Jeweller, ReX 2 Jeweller, ReX Jeweller |
| Link to Manufacturer | www.ajax.systems |
| Notes | N/A |
