vhfBridge Black • Ajax
SKU
AJAX.VHF.B
Warranty:
24 months
Availability:

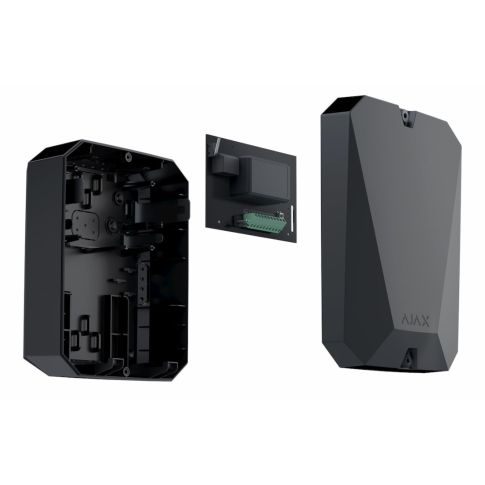

Module for connecting Ajax security systems to third-party VHF transmitters
| Content | |
| Performance | |
| Compatibility | Hub 2, Hub Plus, Hub 2 Plus, TX750C, TR-41 |
|---|---|
| Alarm Input / Tamper Input | N/A |
| Potential Outputs | 8 |
| Operation Modes | Pulsed, Bistable |
| Recommended VHF Transmitters | Hawk VHF from FSK Electronics, TX750C from RDC, TR-41 from Puper |
| Supported Detector Contact Types | N/A |
| Alarm Types | N/A |
| Anti-Sabotage and Tampering | Jamming detection, Tamper-resistant, Forgery prevention |
| Reader Credential | |
| Frequency | N/A |
| RF Option / Format | N/A |
| Radio Technology | |
| Radio Technologies | Jeweller |
| Communication Range | 1800 m |
| Communication Type | Two-way |
| Operating Frequencies | 868.0 ~ 868.6 MHz |
| Maximum effective radiated power | 25 mW |
| Encryption | AES |
| Rolling Code / Frequency Hopping | Frequency hopping |
| Environmental | |
| Operating Temperature | -10°C ~ 40°C |
| Humidity | < 75% |
| Ingress Protection | IP50 |
| Electrical | |
| Input Voltage | 12 V DC, 100 ~ 240 V AC |
| Power Consumption | N/A |
| Backup Battery | 4 Ah, 7 Ah |
| Battery Life | N/A |
| Mechanical | |
| Dimensions | 196.0 x 238.0 x 100.0 mm |
| Net Weight | 0.84 |
| Material | Plastic |
| Color | Black |
| Mounting Type | Wall |
| Certification | |
| Certificates | N/A |
| Package | |
| Package Contents | Quick start guide, Casing |
| Link to Manufacturer | www.ajax.systems |
| Notes | N/A |
