SNV-L6013R • Wisenet
SKU
SNVL6013RP
Warranty:
24 months
Availability:

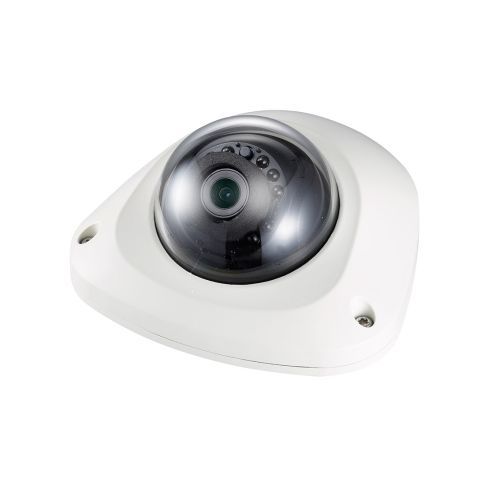

2 MP network onboard IR flat dome camera
| Content | |
| Video | |
| Image Sensor Type | Progressive scan CMOS |
|---|---|
| Image Sensor Size | 1/2.9" |
| Minimum Illumination (Color) | 0.15 lux / 0.003 lux (2 s) |
| Minimum Illumination (B/W) | 0 lux (IR LED) |
| Low Light Technology | N/A |
| Color Technology | N/A |
| Lens | |
| Lens Type | Fixed lens |
| Focal Length | 3.6 mm |
| Zoom Ratio | N/A |
| Field of View (H) | 86.5° |
| Iris Control | Fixed iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | -5° ~ 5° / 0° ~ 67° / 90° |
| Operational | |
| Illumination | Smart IR LED |
| Viewable Length | 15 m |
| Day and Night Mode | True day / night ICR |
| Backlight Compensation | Digital WDR, SSDR, BLC |
| WDR (Wide Dynamic Range) | N/A |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | N/A |
| Defog | N/A |
| Motion Detection | Yes |
| Privacy Masking | Yes |
| Image Rotation | Image flip, Image mirror, Hallway view |
| Control Interface | N/A |
| Video Interface | N/A |
| Analytics | |
| AI Object Classification | N/A |
| AI Analytics | N/A |
| Intelligent Video Analytics | Motion detection, Tampering |
| Facial Analytics | N/A |
| Dedicated Application | N/A |
| Alarm | |
| Alarm Input | N/A |
| Alarm Output | N/A |
| PIR Sensor | N/A |
| Light Warning | N/A |
| Audio | |
| Audio Input | 1 |
| Audio Output | N/A |
| Built-in Microphone | N/A |
| Built-in Speaker | N/A |
| Audio Communication | One-way audio |
| Network | |
| Ethernet | RJ-45 10/100 BASE-T |
| Wireless LAN | N/A |
| Mobile Broadband and GNSS | N/A |
| Video Compression | H.264, M-JPEG |
| Smart / Wise / Zip Streaming | N/A |
| Maximum Resolution | 2 MP / 1920 x 1080 / Full HD 1080p |
| Maximum Framerate (fps) | 30 fps / 2 MP |
| Streaming Capability | Multiple streaming up to 3 profiles |
| Edge Storage | MicroSD, MicroSDHC |
| Memory Card Slot | 1 slot |
| API (Application Programming Interface) | ONVIF profile G, ONVIF profile S, SUNAPI (HTTP API) |
| Network Storage | Network Optix Nx Witness, Genetec Omnicast, Milestone XProtect, Wisenet WAVE, Wisenet SSM, Samsung NVR, SSM Recording Server |
| Mobile and Desktop Applications | Nx Witness Mobile, Genetec Mobile, XProtect Mobile, Wisenet WAVE, SSM, SSM mobile, SmartViewer, iPOLIS mobile |
| Environmental | |
| Operating Temperature | -30°C ~ 55°C |
| Humidity | < 90% |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Electrical | |
| Input Voltage | PoE (IEEE 802.3af) |
| Max Power Consumption | 5.8 W |
| Mechanical | |
| Dimensions | 99.0 x 100.0 x 52.0 mm |
| Net Weight | 0.30 |
| Casing Material | Aluminium |
| Casing Color | Ivory |
| Certification | |
| Certificates | CE, EN 50155, EN 50121 |
| Package | |
| Package Contents | Instruction book & Installer software CD |
| Related Accessory | N/A |
| Link to Manufacturer | www.hanwhavision.com |
| Notes | N/A |
Download firmware:
You can always find the current firmware on the manufacturer's official website www.hanwhavision.com
In the search section, you need to enter the name of the camera and find the exact model. You will then search for the Download - Firmware tab.
In case of questions, please contact our technical support: technika@gemtech.eu
Phone number: 00421 52 7897891.
