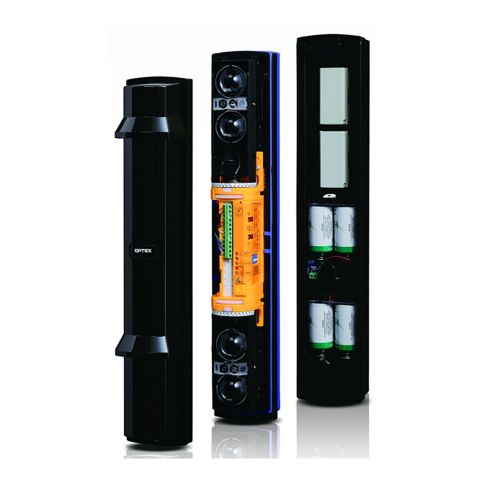

SL-350QFR-BT • Optex
SKU
OX.SL.350QFR.BT
Warranty:
24 months
Availability:
100 m outdoor wireless IR quad beam battery powered with multiple frequencies
| Content | |
| Perimeter Barrier Type | Wireless infrared barrier |
|---|---|
| Performance | |
| Communication | Wireless communication |
| Installation Environment | Outdoor |
| Compatibility | Intrusion control panel |
| Sensing Element | Photoelectric detector |
| Detection Technology | Motion |
| Maximum Detection Range | 100 m |
| Maximum Arrival Range | 1000 m |
| Detection Method | Quad infrared beam interruption detection |
| Selectable Beam Frequency | 4 channels |
| Interruption Period | Variable, 50 ms, 100 ms, 250 ms, 500 ms |
| Alignment Angle | ±90° horizontal, ±10° vertical |
| Environmental | |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | < 95% |
| Ingress Protection | IP65 |
| Electrical | |
| Input Voltage | 3.6 V DC |
| Power Consumption | 745 uA (max), 420 uA (Tx), 325 uA (Rx) |
| Battery | LSH20 |
| Battery Life | 4 years |
| Mechanical | |
| Dimensions | 405.1 x 56.5 x 60.1 mm |
| Net Weight | 0.80 |
| Casing material | ABS |
| Casing Color | Black |
| Mounting Type | Wall mounting, Pole mounting |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | User manual |
| Related Accessory | ABC-4, BC-4, PSC-4, BCU-4, BAU-4, EC-4 |
| Link to Manufacturer | www.optex-europe.com |
| Notes | Free-standing beam tower housing |
