S5VB-F • Dynacolor
SKU
S5VB.F
Warranty:
24 months
Availability:

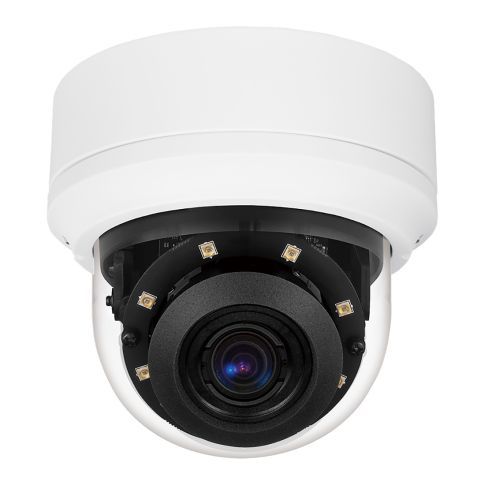

5 MP network IR dome camera
| Content | |
| Video | |
| Image Sensor Type | Progressive scan CMOS |
|---|---|
| Image Sensor Size | 1/2.7" |
| Minimum Illumination (Color) | 0.08 lux |
| Minimum Illumination (B/W) | 0.008 lux / 0 lux (IR LED) |
| Low Light Technology | Crystal Engine Gen3 |
| Color Technology | N/A |
| Lens | |
| Lens Type | Motorized varifocal lens |
| Focal Length | 2.7 ~ 12 mm |
| Zoom Ratio | 4.4x |
| Field of View (H) | 102.1° ~ 35.1° |
| Iris Control | P-Iris, DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | N/A |
| Operational | |
| Illumination | Adaptive IR LED |
| Viewable Length | 40 m |
| Day and Night Mode | True day / night ICR |
| Backlight Compensation | HDR, BLC |
| WDR (Wide Dynamic Range) | Multi exposure |
| Digital Noise Reduction | 3D MCTF, 3D DNR, 2D DNR |
| Digital Image Stabilization | N/A |
| Defog | N/A |
| Motion Detection | Yes |
| Privacy Masking | Yes |
| Image Rotation | Image flip, Image mirror, Image rotation |
| Control Interface | N/A |
| Video Interface | CVBS |
| Analytics | |
| AI Object Classification | N/A |
| AI Analytics | N/A |
| Intelligent Video Analytics | Motion detection, Abandoned object, Loitering, Tampering, Audio detection, Intrusion, Object removal, Direction detection |
| Facial Analytics | N/A |
| Dedicated Application | N/A |
| Alarm | |
| Alarm Input | 1 |
| Alarm Output | 1 |
| PIR Sensor | N/A |
| Light Warning | N/A |
| Audio | |
| Audio Input | 1 |
| Audio Output | 1 |
| Built-in Microphone | N/A |
| Built-in Speaker | N/A |
| Audio Communication | Two-way audio |
| Network | |
| Ethernet | RJ-45 10/100 BASE-T |
| Wireless LAN | N/A |
| Mobile Broadband and GNSS | N/A |
| Video Compression | H.265, H.264, M-JPEG |
| Smart / Wise / Zip Streaming | N/A |
| Maximum Resolution | 5 MP / 2720 x 1976 |
| Maximum Framerate (fps) | 30 fps / 5 MP |
| Streaming Capability | Quad streaming |
| Edge Storage | MicroSD, MicroSDHC, MicroSDXC |
| Memory Card Slot | 1 slot |
| API (Application Programming Interface) | ONVIF profile G, ONVIF profile S, ONVIF profile T, ONVIF profile M |
| Network Storage | Network Optix Nx Witness, Dynacolor NVR |
| Mobile and Desktop Applications | Nx Witness Mobile, GuardXIS |
| Environmental | |
| Operating Temperature | -30°C ~ 55°C |
| Humidity | < 90% |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Electrical | |
| Input Voltage | 12 V DC, 24 V AC, PoE (IEEE 802.3af) |
| Max Power Consumption | 12.95 W (PoE), 14.88 W (12 V DC), 15.25 W (24 V AC) |
| Mechanical | |
| Dimensions | Ø 133.8 x 117.4 mm |
| Net Weight | 0.76 |
| Casing Material | Metal |
| Casing Color | White |
| Certification | |
| Certificates | CE, NDAA |
| Package | |
| Package Contents | Quick guide |
| Related Accessory | C-BR6-00, C-IMA-00, C-TM3-00 |
| Link to Manufacturer | www.dynacolor.com.tw |
| Notes | N/A |
