QXI-RDT-X8 • Optex
SKU
OX.QXI.RDT.X8
Warranty:
24 months
Availability:

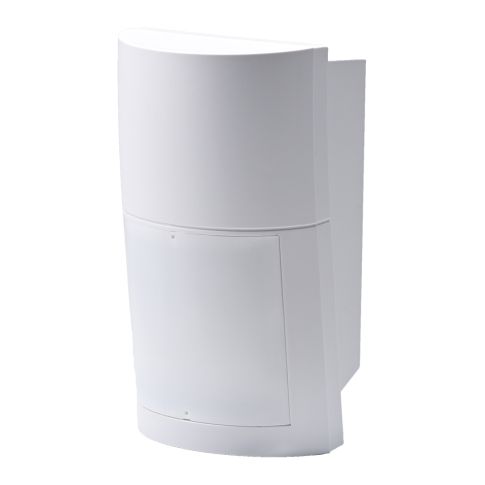

Battery-operated wide angle outdoor PIR & MW detector with pet immunity
| Content | |
| Performance | |
| Communication | Wireless |
|---|---|
| Installation Environment | Outdoor |
| Compatibility | N/A |
| Sensing Element | PIR sensor, Microwave sensor |
| Detection Technology | Motion detector |
| Detection Range / Coverage | 12 m |
| Detection Zones | 18 zones, 40 zones |
| Detection Angle | 120° |
| PIR Lens Type | N/A |
| Activation Threshold | N/A |
| Notification Type | N/A |
| Siren Volume | N/A |
| Alarm Period | 2 s |
| Alarm Logic | AND |
| Detectable Speed | 0.3 ~ 2.0 m/s |
| Sensitivity | Adjustable, 4 levels / PIR, 2 levels / MW, 2 °C at 0.6 m/s |
| Walk Test | Walk test |
| Microwave frequency | 10.587 GHz |
| Alarm Relay Output | N/A |
| EOL Resistors | N/A |
| Anti-masking | N/A |
| Anti-Sabotage and Tampering | Cover tamper, Wall tamper (Optional) |
| Warm-up Period | 60 s |
| RFI Protection | N/A |
| Temperature Compensation / Sensor | Super Multidimensional Analysis / SMDA |
| Installation Height | 0.8 ~ 1.2 m, 2.2 ~ 2.7 m |
| Pet Immunity | Pet immunity |
| Pet Immunity | Yes |
| Communication Technology | |
| Radio Technologies | N/A |
| Communication Range | N/A |
| Communication Type | N/A |
| Operating Frequencies | N/A |
| Maximum effective radiated power | N/A |
| Encryption | N/A |
| Rolling Code / Frequency Hopping | N/A |
| Video | |
| Video Verification | |
| Camera Lens | |
| Camera Angle | |
| Camera Resolution (max) | |
| Frame Rate (max) | |
| Illumination | |
| Wireless | |
| Environmental | |
| Operating Temperature | -40°C ~ 45°C |
| Humidity | < 95% |
| Ingress Protection | IP54 |
| Electrical | |
| Input Voltage | 3 V DC |
| Power Consumption | 16 µA (Standby), 11 mA (Alarm) |
| Battery | 1x CR123A |
| Battery Life | 3 years |
| Mechanical | |
| Dimensions | 144.5 x 78.3 x 83.0 mm |
| Net Weight | 0.230 |
| Casing material | ASA |
| Casing Color | White |
| Mounting Type | Wall mounting |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | Installation instructions |
| Related Accessory | CA-2C, CA-1W |
| Link to Manufacturer | www.optex.co.jp/e/ |
| Notes | N/A |
