PFI-SA70D • Pixfra
SKU
PFI.SA70D
Warranty:
24 months
Availability:

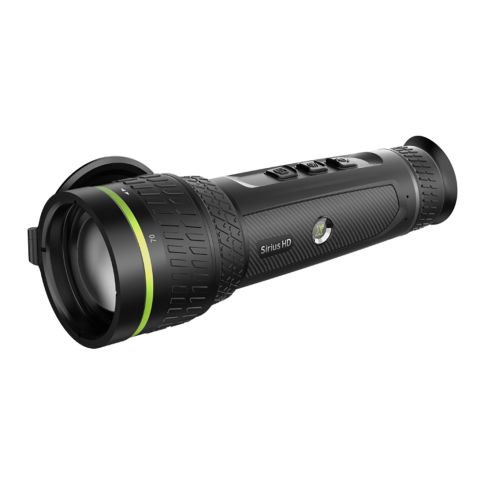

Thermal imaging handheld monocular with detection up to 3600 m
| Content | |
| Thermal Camera | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
|---|---|
| Thermal Image Resolution | 1280 x 1024 |
| Pixel Size | 12 μm |
| Spectral Range | 8 μm ~ 14 μm |
| NETD | ≤ 18 mK |
| Color Palettes | 6 |
| Infrared Lens | |
| Lens Type | Fixed IR lens |
| Focal Length | 35 mm, 70 mm |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Field of View (H x V) | 35 mm: 25.4° x 20.3° / 43.9 x 35.1 m @ 100 m; 70 mm: 12.4° x 10° / 21.9 x 17.6 m @ 100 m |
| Magnification | 35mm: 1.21x, 70mm: 2.41x |
| Diopter Adjustment | N/A |
| Thermal Analytics | |
| Thermal AI Object Classification | Person, Animal |
| Detection Distance | 1800 m, 3600 m |
| Display | |
| Screen | 0.49" OLED |
| Screen Resolution | 1920 x 1080 |
| Interface | |
| Edge Storage | Built-in 64 GB memory |
| Network | |
| Wireless LAN | Wi-Fi |
| Mobile and Desktop Applications | iOS Pixfra Outdoor, Android Pixfra Outdoor |
| Environmental | |
| Operating Temperature | -30°C ~ 55°C |
| Ingress Protection | IP67 |
| Electrical | |
| Power Supply | 5 V DC / 2 A |
| Battery Type | Replaceable, 18650 |
| Battery Capacity | N/A |
| Battery Life | ≥ 4.5 h |
| Mechanical | |
| Dimensions | 251.5 x 79.4 x 90.3 mm |
| Net Weight | 0.91 |
| Casing Color | Black |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | Quick start guide |
| Related Accessory | N/A |
| Link to Manufacturer | www.dahuasecurity.com, www.pixfra.com |
| Notes | N/A |
