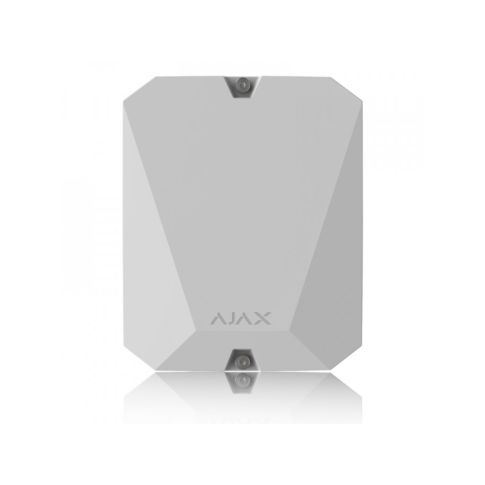

MultiTransmitter Jeweller White • Ajax
SKU
AJAX.MTX.W
Warranty:
24 months
Availability:
Wireless module to integrate up to 18 third-party devices into the Ajax system
| Content | |
| Performance | |
| Compatibility | Hub Hybrid (2G), Hub Hybrid (4G), Hub (2G) Jeweller, Hub 2 (2G) Jeweller, Hub 2 (4G) Jeweller, Hub 2 Plus Jeweller, Hub Plus Jeweller, ReX 2 Jeweller, ReX Jeweller |
|---|---|
| Maximum Connected Devices | 18 wired devices |
| Contact Status | NO, NC, EOL, 2EOL, 3EOL |
| Event Types | 15 |
| Anti-Sabotage and Tampering | Tampering alarm, Protection against spoofing |
| Communication Technology | |
| Radio Technologies | Jeweller |
| Communication Range | 2000 m |
| Communication Type | N/A |
| Operating Frequencies | 868.0 ~ 868.6 MHz |
| Maximum effective radiated power | 20 mW |
| Encryption | AES 128 |
| Rolling Code / Frequency Hopping | Frequency hopping |
| Environmental | |
| Operating Temperature | -10°C ~ 40°C |
| Humidity | < 75% |
| Ingress Protection | IP40 |
| Electrical | |
| Input Voltage | 12 V DC (backup), 110 ~ 240 V AC |
| Power Consumption | 14.6 mA, 69.6 mA |
| Backup Battery | 7 Ah |
| Battery Life | 30 h |
| Mechanical | |
| Dimensions | 192.0 x 238.0 x 100.0 mm |
| Net Weight | 0.81 |
| Casing material | Plastic |
| Casing Color | White |
| Mounting Type | Wall mounting |
| Certification | |
| Certificates | CE, EN 50131-1, EN 50131-3, Class II, EN 50131-6, EN 50131-5-3, Grade 2 |
| Package | |
| Package Contents | Quick start guide |
| Related Accessory | Hub (2G) Jeweller, Hub 2 (2G) Jeweller, Hub 2 (4G) Jeweller, Hub 2 Plus Jeweller, Hub Hybrid (2G), Hub Hybrid (4G), Hub Plus Jeweller, ReX 2 Jeweller, ReX Jeweller |
| Link to Manufacturer | www.ajax.systems |
| Notes | N/A |
| mageworx-dynamic-options | |
