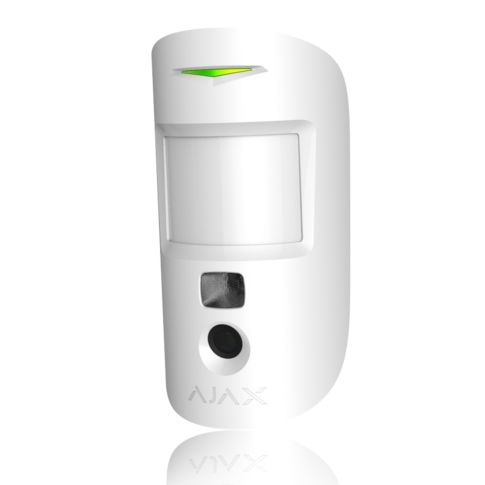

MotionCam White • Ajax
SKU
AJAX.MC.W
Warranty:
24 months
Availability:
Wireless PIR detector with pet immunity and integrated Wi-Fi camera
| Content | |
| Performance | |
| Communication | Wireless |
|---|---|
| Installation Environment | Indoor |
| Compatibility | Hub 2, Hub 2 Plus |
| Sensing Element | PIR sensor |
| Detection Technology | Motion |
| Detection Range / Coverage | 12 m |
| Detection Range / Coverage | 12 |
| Detection Zones | N/A |
| Detection Angle | 80° (V), 88.5° (H) |
| PIR Lens | N/A |
| Activation Threshold | N/A |
| Notification Type | N/A |
| Siren Volume | N/A |
| Alarm Period | N/A |
| Alarm Type | N/A |
| Motion Detection Speed | 0.3 ~ 2 m/s |
| Sensitivity | Adjustable (3 levels) |
| Self Test | Remote setting and testing |
| Walk Test | N/A |
| Microwave frequency | N/A |
| Solid State Relay | N/A |
| Separated Alarm & Tamper Relays | N/A |
| EOL Resistors | N/A |
| Creep Zone | N/A |
| Anti-masking | N/A |
| Anti-masking | N/A |
| Anti-Sabotage and Tampering | Protection against fraud, Jamming detection, Tamper-resistant |
| Pulse Counter | N/A |
| Warm-up Period | N/A |
| RFI Protection | N/A |
| Temperature Compensation / Sensor | Temperature sensor |
| Digital Analysis | N/A |
| Installation Height | 2.4 m |
| Pet Immunity | Pet immunity up to 15 kg, 0.5 m |
| Pet Immunity | Yes |
| Communication Technology | |
| Radio Technologies | Jeweller, Wings |
| Communication Range | 1700 m |
| Communication Type | Two-way |
| Operating Frequencies | 868.0 ~ 868.6 MHz |
| Maximum effective radiated power | 20 mW |
| Encryption | AES |
| Rolling Code / Frequency Hopping | Frequency hopping |
| Video | |
| Video Verification | Photo verification |
| Camera Lens | N/A |
| Camera Angle | 90° (H) |
| Camera Resolution (max) | 160 x 120, 320 x 240, 640 x 480 |
| Frame Rate (max) | 5 frames |
| Illumination | IR light |
| Wireless | Yes |
| Environmental | |
| Operating Temperature | -10°C ~ 40°C |
| Humidity | < 75% |
| Ingress Protection | N/A |
| Electrical | |
| Input Voltage | 3 V DC |
| Power Consumption | N/A |
| Battery | 2x CR123A |
| Battery Life | 3 years |
| Mechanical | |
| Dimensions | 135.0 x 70.0 x 60.0 mm |
| Net Weight | 0.17 |
| Material | ABS |
| Color | White |
| Mounting Type | Wall |
| Certification | |
| Certificates | CE, EN 50131-1, 50131-5-3, EN 50131-2-2, Grade 2, EN 50131-6, EN 300 220-2, EN 300 220-1 |
| Package | |
| Package Contents | SmartBracket, User guide, 2x CR123A |
| Link to Manufacturer | www.ajax.systems |
| Notes | N/A |
