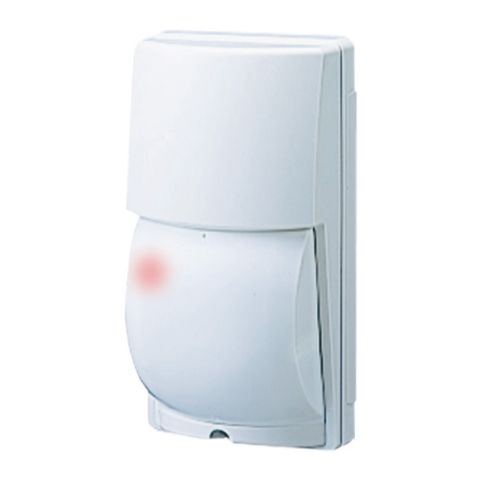

LX-802N • Optex
SKU
OX.LX.802N
Warranty:
24 months
Availability:
Long range outdoor PIR detector with pet immunity
| Content | |
| Performance | |
| Communication | Wired |
|---|---|
| Installation Environment | Outdoor |
| Compatibility | N/A |
| Sensing Element | PIR sensor |
| Detection Technology | Motion detector |
| Detection Range / Coverage | 24 x 2 m |
| Detection Zones | 4 zones, 12 zones |
| Detection Angle | N/A |
| PIR Lens Type | N/A |
| Activation Threshold | N/A |
| Notification Type | N/A |
| Siren Volume | N/A |
| Alarm Period | 2 s |
| Alarm Logic | N/A |
| Detectable Speed | 0.3 ~ 1.0 m/s |
| Sensitivity | Adjustable, 3 levels / PIR |
| Walk Test | Walk test |
| Microwave frequency | N/A |
| Alarm Relay Output | Yes |
| EOL Resistors | N/A |
| Anti-masking | N/A |
| Anti-Sabotage and Tampering | Cover tamper |
| Warm-up Period | 60 s |
| RFI Protection | N/A |
| Temperature Compensation / Sensor | N/A |
| Installation Height | 2.5 m, 1.2 ~ 1.5 m |
| Pet Immunity | Pet immunity |
| Pet Immunity | Yes |
| Communication Technology | |
| Radio Technologies | N/A |
| Communication Range | N/A |
| Communication Type | N/A |
| Operating Frequencies | N/A |
| Maximum effective radiated power | N/A |
| Encryption | N/A |
| Rolling Code / Frequency Hopping | N/A |
| Video | |
| Video Verification | |
| Camera Lens | |
| Camera Angle | |
| Camera Resolution (max) | |
| Frame Rate (max) | |
| Illumination | |
| Wireless | |
| Environmental | |
| Operating Temperature | -20°C ~ 50°C |
| Humidity | < 95% |
| Ingress Protection | IP54 |
| Electrical | |
| Input Voltage | 10.8 ~ 13.2 V DC |
| Power Consumption | 25 mA |
| Battery | N/A |
| Battery Life | N/A |
| Mechanical | |
| Dimensions | 141.0 x 74.8 x 57.5 mm |
| Net Weight | 0.190 |
| Casing material | Plastic |
| Casing Color | White |
| Mounting Type | Wall mounting |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | Installation instructions |
| Related Accessory | CA-1W, CA-2C |
| Link to Manufacturer | www.optex.co.jp/e/ |
| Notes | N/A |
