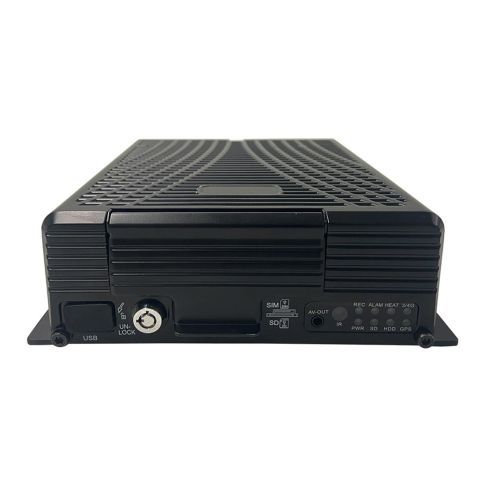

JH8-HYBRID-GNN V3 • iCarVisions
SKU
ICV.JH8.HYB.GNN.V3
Warranty:
24 months
Availability:
8-channel mobile digital video recorder supporting AHD / CVBS and IP cameras
| Content | |
| System | |
| Operating System | Embedded Linux |
|---|---|
| Video | |
| Supported HD Signals | AHD, CVBS |
| AHD Camera Inputs | 8 channels |
| CVI Camera Inputs | N/A |
| TVI Camera Inputs | N/A |
| SD / CVBS Camera Inputs | 8 channels |
| IP Camera Inputs | 8 channels |
| Total Channels | 12 channels |
| Display | |
| Local Video Outputs | VGA, CVBS |
| Maximum Display Resolution | SXGA / 1280 x 1024 |
| Recording | |
| Video Compression | H.265, H.264 |
| Smart / Wise / Zip Streaming | N/A |
| Recording Bandwidth | N/A |
| Recording Frame Rate of AHD Cameras | 30 fps @ 2 MP per channel |
| Recording Frame Rate of HDCVI Cameras | N/A |
| Recording Frame Rate of HD-TVI Cameras | N/A |
| Recording Frame Rate of SD Cameras | 25 fps @ 960H per channel |
| Max Recording Resolution of AHD Cameras | 2 MP |
| Max Recording Resolution of HDCVI Cameras | N/A |
| Max Recording Resolution of HD-TVI Cameras | N/A |
| Max Recording Resolution of SD Cameras | 960H |
| Max Recording Resolution of IP Cameras | 8 MP |
| AI Interconnects | |
| Advanced Driver Assistance System (ADAS) | ADAS |
| Driver Status Monitoring (DSM) | DSM |
| Blind Spot Detection (BSD) | BSD |
| Search and Playback | |
| Simultaneous Playback | 4 channels |
| AI Search | Person, Face, Vehicle, Face recognition, Face detection |
| Storage | |
| Built-In Disk | N/A |
| Number of Internal Disks | 1x 2.5" SSD |
| Memory Card Slot | N/A |
| Backup | |
| Backup | USB, Network |
| Alarm | |
| Alarm Inputs | 8 |
| Alarm Outputs | 1 |
| Audio | |
| Audio Inputs | 4 CH |
| Audio Outputs | 1 CH (Jack), 1 CH (24-pin) |
| Audio Communication | Two-way audio |
| Performance | |
| Sensors | Gyroscope, Accelerometer |
| Network | |
| Ethernet | 1x RJ-45 10/100 BASE-T |
| Wireless Communication | N/A |
| Mobile Broadband | N/A |
| Global Navigation Satellite System | GPS |
| Mobile & Desktop Applications | Intelligent Vehicle Monitoring System, iCarView |
| Interface | |
| Video Inputs | 8x Aviation (AHD) |
| HDMI | N/A |
| VGA | 1x Aviation VGA |
| AV Output | 1x Jack, 1x 24-pin |
| USB | 2x USB |
| Serial Interface | 1x RS-485, 1x RS-232, 1x CAN bus (optional) |
| Communication Protocols | Pelco-D |
| Environmental | |
| Operating Temperature | -40°C ~ 80°C |
| Humidity | N/A |
| Electrical | |
| Input Voltage | 8 ~ 36 V DC |
| Power Consumption | 3 A |
| Mechanical | |
| Dimensions | 192.0 x 184.0 x 61.0 mm |
| Net Weight (kg) | 1.30 |
| Casing material | Metal |
| Casing Color | Black |
| Mounting Type | Vehicle installation |
| Certification | |
| Certificates | EN 50155, MIL-STD-810G, CE |
| Package | |
| Package Contents | Remote controller, GPS antenna |
| Related Accessory | N/A |
| Link to Manufacturer | www.icarvisions.com |
| Notes | Only a limited number of channels support video analysis. Please refer to the datasheet for detailed information on video analysis. |
