JA-MC921 • Icarvisions Technology
SKU
ICV.JAMC921
Warranty:
24 months
Availability:

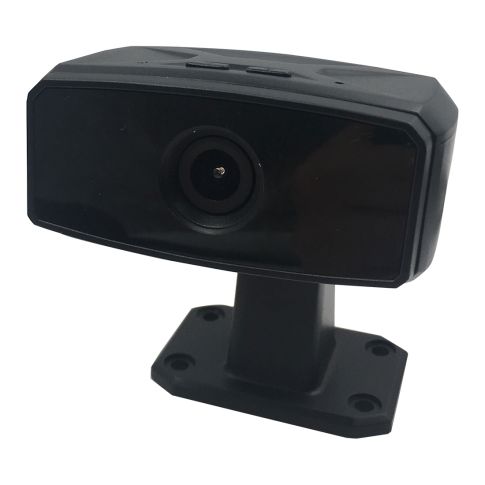

2 MP AI dash cam with built-in DSM (Driver Status Monitoring)
| Content | |
| Camera | |
| Image Sensor Type | Progressive scan CMOS |
|---|---|
| Image Sensor Size | 1/3" |
| Minimum Illumination (Color) | 0.001 lux |
| Illumination | IR LED |
| Viewable Length | 10 m |
| Lens | |
| Lens Type | Fixed lens |
| Focal Length | 6 mm |
| Field of View (H) | 50° |
| Video | |
| Video Output Signal | AHD |
| Maximum Resolution | 2 MP / 1920 x 1080 / Full HD 1080p |
| Maximum Framerate AHD | 25 fps / 2 MP |
| Maximum Framerate HDCVI | N/A |
| Analytics | |
| Advanced Driver Assistance System (ADAS) | N/A |
| Driver Status Monitoring (DSM) | Yawning, Eyes closing, Smoking, Making phone calls, Distraction |
| Blind Spot Detection (BSD) | N/A |
| Operational | |
| Backlight Compensation | Digital WDR |
| WDR (Wide Dynamic Range) | N/A |
| Digital Noise Reduction | N/A |
| Interface | |
| Video Interface | Aviation connector |
| Audio | |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Environmental | |
| Operating Temperature | -25°C ~ 75°C |
| Humidity | < 90% |
| Ingress Protection | N/A |
| Electrical | |
| Input Voltage | 12 V DC |
| Power Consumption | 165 mA |
| Mechanical | |
| Dimensions | 80.0 x 86.5 x 37.5 mm |
| Net Weight | 0.150 |
| Casing material | Metal, Plastic |
| Casing Color | Black |
| Certification | |
| Certificates | CE, NDAA |
| Package | |
| Package Contents | User manual, Screws |
| Related Accessory | N/A |
| Link to Manufacturer | www.icarvisions.com |
| Notes | Installation near the rearview mirror |
