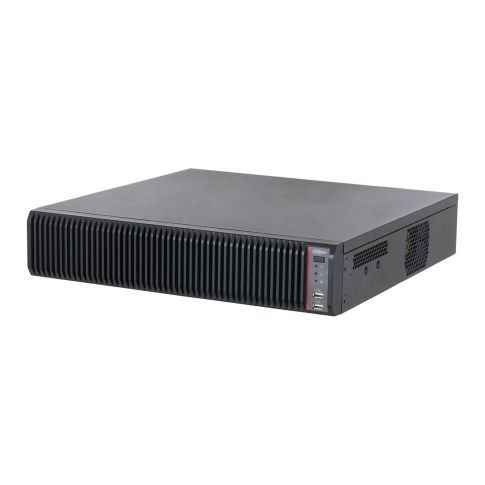

IVSS5108 • Dahua
| Content | |
| System | |
| Operating System | Embedded Linux |
|---|---|
| Processor | 64-bit multi-core processor |
| RAM | N/A |
| Operating System Drive | N/A |
| AI Accelerator Module | N/A |
| Video | |
| IP Camera Inputs | 64 channels |
| Total Channels | 64 channels |
| Display | |
| Local Video Outputs | HDMI, VGA |
| Maximum Display Resolution | 4K UHD / 3840 x 2160 |
| Decoding Capability | 2 channels: 16 MP @ 30fps, 20 channels: 1080p @ 30 fps, 1 channel: 32 MP @ 30 fps, 5 channels: 8MP @ 30 fps, 10 channels: 4MP @ 30 fps, 45 channels: 720p @ 30 fps |
| Recording | |
| Video Compression | H.265, H.264 |
| Smart / Wise / Zip Streaming | Smart streaming |
| Recording Bandwidth | 384 Mbps |
| Max Recording Resolution of IP Cameras | 32 MP |
| Analytics by Recorder | |
| AI Object Classification | N/A |
| Object Attributes | N/A |
| Facial Analytics | N/A |
| Automatic number-plate recognition (ANPR) | N/A |
| Search and Playback | |
| Simultaneous Playback | 16 channels |
| AI Search | Person, Person attributes, Face, Face attributes, Face recognition, Vehicle, Vehicle attributes, Licence plate recognition |
| Storage | |
| Built-In Disk | N/A |
| Number of Internal Disks | 8x SATA |
| Hot Swap | N/A |
| RAID | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| External Storage | eSATA, iSCSI |
| Backup | |
| Backup | USB, eSATA, iSCSI, Network |
| DVD-RW | N/A |
| Alarm | |
| Alarm Inputs | 16 inputs |
| Alarm Outputs | 8 outputs |
| Audio | |
| Audio Inputs | 1 CH (RCA), 64 CH (Network) |
| Audio Outputs | 2 CH (RCA) |
| Audio Communication | Two-way audio |
| Performance | |
| Easy Configuration | QR code scanning (P2P) |
| Fisheye Dewarping | N/A |
| Redundancy | N/A |
| Network | |
| Ethernet | 4x RJ-45 10/100/1000 BASE-T |
| Wireless Communication | N/A |
| Built-In PoE Switch | N/A |
| Mobile & Desktop Applications | DSS, SmartPSS Lite, DMSS |
| Interface | |
| DisplayPort | N/A |
| HDMI | 2x HDMI |
| VGA | 1x VGA |
| USB | 4x USB |
| eSATA | 1x eSATA |
| SAS (Serial Attached SCSI) | N/A |
| Serial Interface | 1x RS-485, 1x RS-232 |
| Environmental | |
| Operating Temperature | 0°C ~ 55°C |
| Humidity | < 90% |
| Electrical | |
| Input Voltage | 100 ~ 240 V AC |
| Power Consumption | 38 W, 105 W |
| Power Redundancy | N/A |
| PoE Power Budget | N/A |
| Mechanical | |
| Dimensions | 439.7 x 446.2 x 89.0 mm |
| Net Weight (kg) | 7.66 |
| Casing material | Metal |
| Casing Color | Black |
| Mounting Type | Desktop, 19“ Rack mount 2U |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | User's Manual |
| Related Accessory | N/A |
| Link to Manufacturer | www.dahuasecurity.com |
| Notes | N/A |
Firmware download:
You can find the current firmware on the official website of the manufacturer www.dahuasecurity.com.
In the upper right corner of the search section, you need to enter the name of the camera and find the exact model. Then look for the Firmware tab. Several firmware may be listed for each product. If they have the same name and differ only in the letters PN or NP, choose firmware with the PAL standard, and therefore PN.
If you do not want to upgrade the firmware yourself, please contact our technical support: technika@gemtech.eu
Or call the phone number: 052 7897891.
