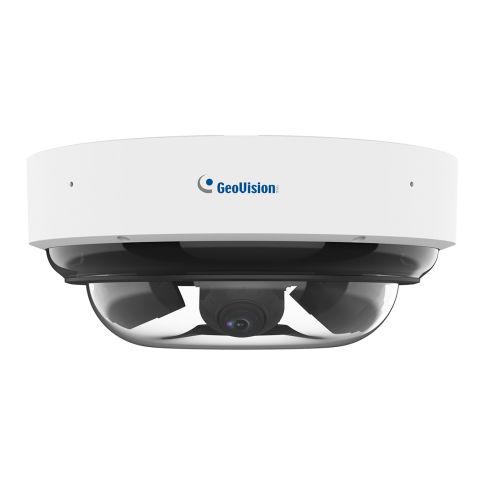

GV-TMS20811 • GeoVision
| Content | |
| Camera | |
| Image Sensor Type | Progressive scan super low lux CMOS |
|---|---|
| Image Sensor Size | 4x 1/2.7" |
| Day and Night Mode | 4x True day / night ICR |
| Minimum Illumination (Color) | 0.002 lux |
| Minimum Illumination (B/W) | 0.001 lux / 0 lux (IR LED) |
| Low Light Technology | Super Low Lux |
| Color Technology | N/A |
| Illumination | Intelligent IR LED |
| Viewable Length | 50 m |
| Lens | |
| Lens Type | 4x Motorized varifocal lens |
| Focal Length | 2.7 ~ 13.5 mm |
| Zoom Ratio | 5x |
| Field of View (H) | 110.3° ~ 31° (per Sensor) |
| Iris Control | Fixed iris |
| LiDAR | N/A |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 360° / 0° ~ 65° / 0° ~ 355° |
| Pan / Tilt Speed | N/A |
| Video | |
| Video Compression | H.265, H.264, M-JPEG |
| Smart / Wise / Zip Streaming | N/A |
| Maximum Resolution | 4x 5 MP / 4x 2880 x 1620 |
| Maximum Framerate (fps) | 30 fps / 5 MP |
| Streaming Capability | Triple streaming |
| Operational | |
| Backlight Compensation | WDR Pro, BLC |
| WDR (Wide Dynamic Range) | 130 dB |
| Digital Noise Reduction | 3D DNR |
| Digital Image Stabilization | N/A |
| Defog | Defog |
| Motion Detection | Yes |
| Privacy Masking | Yes |
| Image Rotation | Image flip, Image mirror, Corridor view |
| Analytics | |
| Auto tracking | N/A |
| AI Object Classification | Person detection, Vehicle detection, Face detection |
| AI Analytics | Region intrusion, Line crossing, Entering area, Leaving area, Crowd density, People counting |
| Intelligent Video Analytics | Motion detection, Tampering, Audio detection |
| Facial Analytics | Face detection |
| Dedicated Application | N/A |
| Interface | |
| Control Interface | RS-485 |
| Video Interface | N/A |
| Edge Storage | MicroSD, MicroSDHC, MicroSDXC |
| Memory Card Slot | 1 slot |
| Audio | |
| Audio Input | 1 |
| Audio Output | 1 |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Audio Communication | Two-way audio |
| Alarm | |
| Alarm Input | 3 |
| Alarm Output | 2 |
| PIR Sensor | N/A |
| Light Warning | N/A |
| Network | |
| Ethernet | RJ-45 10/100/1000 BASE-T |
| Wireless LAN | N/A |
| Mobile Broadband and GNSS | N/A |
| API (Application Programming Interface) | ONVIF profile G, ONVIF profile S, ONVIF profile T, ONVIF profile M |
| Network Storage | Network Optix Nx Witness, GV-VMS, GV‐NVR, GV‐Recording Server |
| Mobile and Desktop Applications | Nx Witness Mobile, GV-Edge Recording Manager, GV-Eye |
| Environmental | |
| Operating Temperature | -30°C ~ 60°C |
| Humidity | < 95% |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Electrical | |
| Input Voltage | 24 V DC, 24 V AC, PoE++ (IEEE 802.3bt) |
| Max Power Consumption | 48.7 W |
| Mechanical | |
| Dimensions | Ø 318.0 x 136.6 mm |
| Net Weight | 4.77 |
| Wiper | N/A |
| Casing Material | Metal |
| Casing Color | White |
| Certification | |
| Certificates | CE, NDAA |
| Package | |
| Package Contents | Quick start guide |
| Related Accessory | GV-Mount113, GV-Mount114, GV-Mount 208-5, GV-Mount210-3, GV-Mount313, GV-Mount480 |
| Link to Manufacturer | www.geovision.com.tw |
| Notes | N/A |
