GV-TMEB5800 • GeoVision
SKU
GVTMEB5800
Warranty:
24 months
Availability:

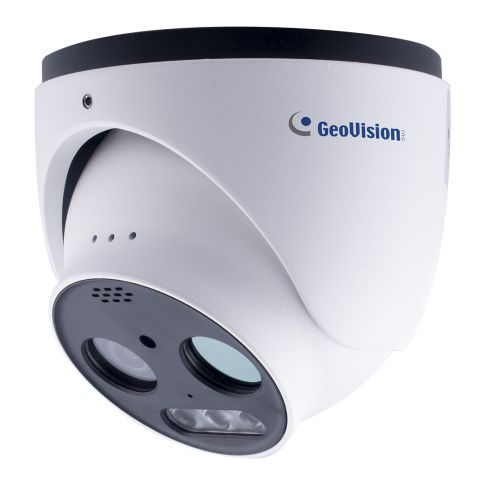

Radiometric bispectral 5 MP AI network eyeball camera with thermal imaging 256 x 192 pixels
| Content | |
| Thermal Camera | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
|---|---|
| Thermal Image Resolution | 256 x 192 |
| Pixel Size | 12 μm |
| Spectral Range | 8 μm ~ 14 μm |
| NETD | ≤ 50 mK |
| Color Palettes | 5 |
| Infrared Lens | |
| Lens Type | Fixed IR lens |
| Focal Length | 3.2 mm |
| Field of View (H x V) | 56° x 42.2° |
| Camera | |
| Image Sensor Type | Progressive scan CMOS |
| Image Sensor Size | 1/2.7" |
| Day and Night Mode | True day / night ICR |
| Minimum Illumination (Color) | 0.02 lux |
| Minimum Illumination (B/W) | 0 lux (IR) |
| Low Light Technology | Super Low Lux |
| Color Technology | N/A |
| Illumination | Intelligent IR LED |
| Viewable Length | 30 m |
| Lens | |
| Lens Type | Fixed lens |
| Focal Length | 4 mm |
| Zoom Ratio | N/A |
| Field of View (H) | 81° |
| Iris Control | Fixed iris |
| LiDAR | N/A |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 360° / 0° ~ 75° / 0° ~ 360° |
| Pan / Tilt Speed | N/A |
| Video | |
| Video Compression | H.265, H.264, M-JPEG |
| Smart / Wise / Zip Streaming | N/A |
| Maximum Resolution | 5 MP / 2592 x 1944 |
| Maximum Framerate (fps) | 30 fps / 5 MP |
| Streaming Capability | Triple streaming |
| Thermal Video | |
| Maximum Resolution | 1 MP / 1280 x 720 |
| Maximum Framerate (fps) | 17 fps / 1 MP |
| Streaming Capability | Single |
| Operational | |
| Backlight Compensation | WDR Pro, BLC |
| WDR (Wide Dynamic Range) | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Digital Image Stabilization | N/A |
| Defog | Defog |
| Motion Detection | Yes |
| Privacy Masking | Yes |
| Image Rotation | Image flip, Image mirror |
| Analytics | |
| Auto tracking | N/A |
| AI Object Classification | Person detection, Vehicle detection, Face detection |
| AI Analytics | Loitering, Region intrusion, Illegal parking, Line crossing, Region entrance, Region exiting, People counting |
| Intelligent Video Analytics | Motion detection, Scene change, Video blur detection, Video cast detection |
| Facial Analytics | Face detection |
| Dedicated Application | N/A |
| Thermal Analytics | |
| Thermal AI Object Classification | Person, Vehicle |
| Thermal AI Analytics | Fire, Temperature, Line crossing, Region entrance, Region exiting, Intrusion |
| Fire Detection | Supported, 11 m |
| Smoke Detection | N/A |
| Heat / Temperature Detection | Supported, 30 m |
| Radiometry | |
| Temperature Detect Range | -20°C ~ 150 °C, 100°C ~ 550 °C |
| Temperature Measurement Accuracy | ±8°C, ±8% |
| Temperature Measurement Distance | N/A |
| Interface | |
| Control Interface | N/A |
| Video Interface | N/A |
| Edge Storage | MicroSD, MicroSDHC, MicroSDXC, UHS-I |
| Memory Card Slot | 1 slot |
| Audio | |
| Audio Input | 1 |
| Audio Output | N/A |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Audio Communication | Two-way audio |
| Alarm | |
| Alarm Input | 1 |
| Alarm Output | 1 |
| PIR Sensor | N/A |
| Light Warning | Sound and light alert |
| Network | |
| Ethernet | RJ-45 10/100 BASE-T |
| Wireless LAN | N/A |
| Mobile Broadband and GNSS | N/A |
| API (Application Programming Interface) | ONVIF profile G, ONVIF profile S, ONVIF profile T, ONVIF profile M |
| Network Storage | Network Optix Nx Witness, GV-VMS, GV‐NVR, GV‐Recording Server |
| Mobile and Desktop Applications | Nx Witness Mobile, GV-Edge Recording Manager, GV-Eye |
| Environmental | |
| Operating Temperature | -30°C ~ 60°C |
| Humidity | < 95% |
| Ingress Protection | IP66 |
| Vandal Resistance | N/A |
| Electrical | |
| Input Voltage | 12 V DC, PoE (IEEE 802.3af) |
| Max Power Consumption | 9 W |
| Mechanical | |
| Dimensions | Ø 111.5 x 99.6 mm |
| Net Weight | 0.68 |
| Wiper | N/A |
| Casing Material | Metal |
| Casing Color | White |
| Certification | |
| Certificates | CE, NDAA |
| Package | |
| Package Contents | Quick start guide |
| Related Accessory | GV-Mount211-4, GV-Mount211-6, GV-Mount506 |
| Link to Manufacturer | www.geovision.com.tw |
| Notes | N/A |
| mageworx-dynamic-options | |
Popular tools:
GV-IP Device Utility
GV-IP Device Utility detects any GeoVision devices within the same LAN. It allows you to quickly set the IP address, update firmware, export/import device settings for and reboot IP devices.
GV‐Edge Recording Manager
GV-Edge Recording Manger combines live monitoring and remote control of GeoVision IP devices and software into a single management interface.
If you need more help, please contact our technical support:support@gemtech.eu
Or call the phone number: 00421 52 7897891.
Download firmware:
You can always find the current firmware on the manufacturer's official website www.geovision.com.tw
In the search section, you need to enter the name of the camera and find the exact model. You will then search for the Download - Firmware tab.
In case of questions, please contact our technical support: support@gemtech.eu
Phone number: 00421 52 7897891
