GV-TBL8804 • GeoVision

SKU
GVTBL8804
Warranty:
24 months
Availability:
> 25 pc

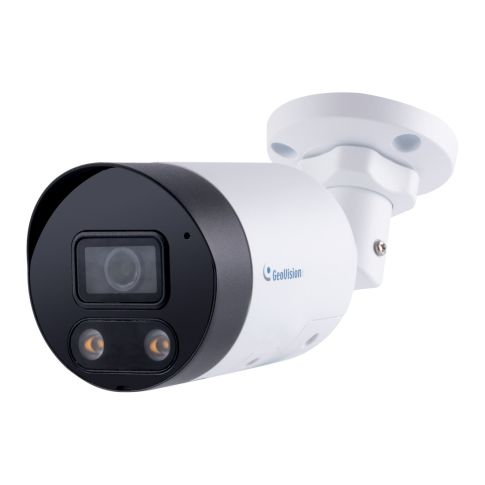

4K / 8 MP network AI dual LED bullet camera
Estimate Fees
€421.33 €351.11
Content
Video
Image Sensor Type Progressive scan super low lux CMOS
Image Sensor Size 1/2.7"
Minimum Illumination (Color) 0.01 lux
Minimum Illumination (B/W) 0 lux (IR LED)
Low Light Technology Super Low Lux
Color Technology Full-color
Lens
Lens Type Fixed lens
Focal Length 4 mm
Zoom Ratio N/A
Field of View (H) 86°
Iris Control Fixed iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 360° / 0° ~ 90° / 0° ~ 360°
Operational
Illumination Warm LED, Intelligent IR LED
Viewable Length 20 m, 30 m
Color Mode True day / night ICR
Backlight Compensation WDR Pro, BLC
WDR (Wide Dynamic Range) 120 dB
Digital Noise Reduction 3D DNR
Digital Image Stabilization N/A
Defog Defog
Motion Detection Yes
Privacy Masking Yes
Image Rotation Image flip, Image mirror, Image rotation
Control Interface N/A
Video Interface N/A
Analytics
AI Object Classification Person detection, Face detection, Vehicle detection
AI Analytics Intrusion, Crossing line, Entering area, Leaving area, Crowd density
Intelligent Video Analytics Motion detection, Tampering, Audio detection
Business Intelligence People counting
Facial Analytics Face detection
Pre-installed Application N/A
Alarm
Alarm Input N/A
Alarm Output N/A
PIR Sensor N/A
Light Warning N/A
Audio
Audio Input 1
Audio Output 1
Built-in Microphone Yes
Built-in Speaker Yes
Audio Communication Two-way audio
Network
Ethernet RJ-45 10/100 BASE-T
Wireless LAN N/A
Mobile Broadband & GNSS N/A
Video Compression H.265, H.264, M-JPEG
Smart / Wise / Zip Streaming N/A
Maximum Resolution 8 MP / 3840 x 2160 / Ultra HD / 4K
Maximum Framerate (fps) 30 fps / 5 MP, 20 fps / 8 MP
Streaming Capability Triple streaming
Edge Storage MicroSD, MicroSDHC, MicroSDXC, UHS-I
Memory Card Slot 1 slot
API (Application Programming Interface) ONVIF profile G, ONVIF profile S, ONVIF profile T
Network Storage Network Optix Nx Witness, GV-VMS, GV‐NVR, GV‐Recording Server
Mobile & Desktop Applications GV-Edge Recording Manager, GV-Eye
Environmental
Operating Temperature ‐30°C ~ 60°C
Humidity < 95%
Ingress Protection IP67
Vandal Resistance N/A
Electrical
Input Voltage 12 V DC, PoE (IEEE 802.3af)
Power Consumption 10.5 W
Mechanical
Dimensions 187.0 x 71.0 x 71.0 mm
Net Weight 0.41
Casing material Metal, Plastic
Casing Color White
Certification
Certificates CE, NDAA
Package
Package Contents Download guide
Related Accessory
Link to Manufacturer
Notes N/A
mageworx-dynamic-options

Download firmware:

You can always find the current firmware on the manufacturer's official website www.geovision.com.tw

In the search section, you need to enter the name of the camera and find the exact model. You will then search for the Download - Firmware tab.

geovision firmware

In case of questions, please contact our technical support: support@gemtech.eu
Phone number: 00421 52 7897891

Popular tools:

GV-IP Device Utility

GV-IP Device Utility detects any GeoVision devices within the same LAN. It allows you to quickly set the IP address, update firmware, export/import device settings for and reboot IP devices.

GV‐Edge Recording Manager

GV-Edge Recording Manger combines live monitoring and remote control of GeoVision IP devices and software into a single management interface.

If you need more help, please contact our technical support:support@gemtech.eu
Or call the phone number: 00421 52 7897891.
