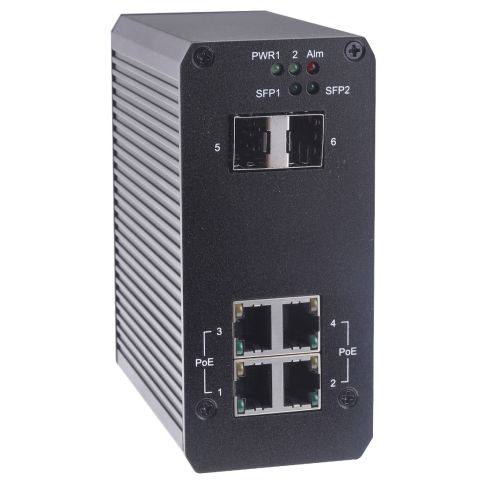

GV-POE0410-E-V2 • GeoVision
| Content | |
| Interface | |
| Management Type | Unmanaged |
|---|---|
| Layer Supported | L2 |
| Total Ports | 6.000000 |
| Majority Port Speed | Gigabit ethernet |
| 10/100 Mbps | N/A |
| 10/100 Mbps PoE | N/A |
| 100/1000 Mbps | N/A |
| 100/1000 Mbps PoE | 4 ports |
| Gigabit SFP | 2 ports |
| 10G SFP+ | N/A |
| Gigabit Combo (SFP/RJ-45) | N/A |
| Multi-Gigabit Combo SFP+/RJ-45 | N/A |
| Total PoE Ports | 4.000000 |
| Console Port | N/A |
| Alarm Output | 1 |
| Interface | RJ-45 |
| Performance | |
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 8.93 Mpps |
| MAC Addresses | 2 K |
| Packet Buffer Memory | 128 Kb |
| Jumbo Frame | 9 KB |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3z 1000BASE-X |
| PoE Standards | IEEE 802.3af up to 15.4 W, IEEE 802.3at up to 30 W |
| Network Redundancy | N/A |
| Environmental | |
| Operating Temperature | -40°C ~ 75°C |
| Humidity | < 90% |
| Ingress Protection | N/A |
| Electrical | |
| Input Voltage | 44 ~ 57 V DC |
| Power Consumption | 127 W |
| Total PoE Budget | 120 W |
| Power Redundancy | Yes |
| Fanless | N/A |
| Mechanical | |
| Dimensions | 120.0 x 55.0 x 108.0 mm |
| Net Weight | 0.62 |
| Material | Metal |
| Color | Black |
| Mounting Type | DIN rail mount |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | Installation guide |
| Link to Manufacturer | www.geovision.com.tw |
| Notes | N/A |
| mageworx-dynamic-options | |
Download firmware:
You can always find the current firmware on the manufacturer's official website www.geovision.com.tw
In the search section, you need to enter the name of the camera and find the exact model. You will then search for the Download - Firmware tab.
In case of questions, please contact our technical support: support@gemtech.eu
Phone number: 00421 52 7897891
