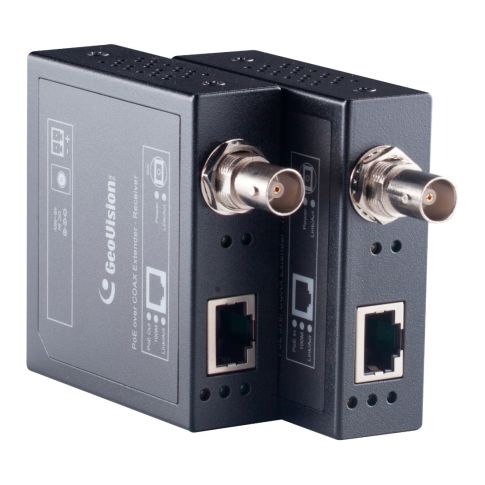

GV-POC0100 • GeoVision
| Content | |
| Interface | |
| Ethernet Interface | 1x RJ-45 10/100 BASE-T(X) |
|---|---|
| Coaxial Interface | 1x BNC |
| Performance | |
| Transmission Distance | 180 m over RG-6, 100 m over RG-59 |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet |
| PoE Standards | IEEE 802.3af up to 15.4 W, IEEE 802.3at up to 30 W |
| Total PoE Budget | 30 W |
| Environmental | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | < 90% |
| Electrical | |
| Input Voltage | 54 V DC, PoE |
| Power Consumption | N/A |
| Surge Protection CM / DM | N/A |
| Mechanical | |
| Dimensions | 22.0 x 71.0 x 66.0 mm |
| Net Weight | 0.27 |
| Casing material | Metal |
| Casing Color | Black |
| Mounting Type | Desktop |
| Certification | |
| Certificates | RoHS |
| Package | |
| Package Contents | Power adapter |
| Link to Manufacturer | www.geovision.com.tw |
| Notes | Supplied as a pair |
| mageworx-dynamic-options | |
Download firmware:
You can always find the current firmware on the manufacturer's official website www.geovision.com.tw
In the search section, you need to enter the name of the camera and find the exact model. You will then search for the Download - Firmware tab.
In case of questions, please contact our technical support: support@gemtech.eu
Phone number: 00421 52 7897891
Popular tools:
GV-IP Device Utility
GV-IP Device Utility detects any GeoVision devices within the same LAN. It allows you to quickly set the IP address, update firmware, export/import device settings for and reboot IP devices.
GV‐Edge Recording Manager
GV-Edge Recording Manger combines live monitoring and remote control of GeoVision IP devices and software into a single management interface.
If you need more help, please contact our technical support:support@gemtech.eu
Or call the phone number: 00421 52 7897891.
