GV-PDR8800 • GeoVision
SKU
GVPDR8800
Warranty:
24 months
Availability:

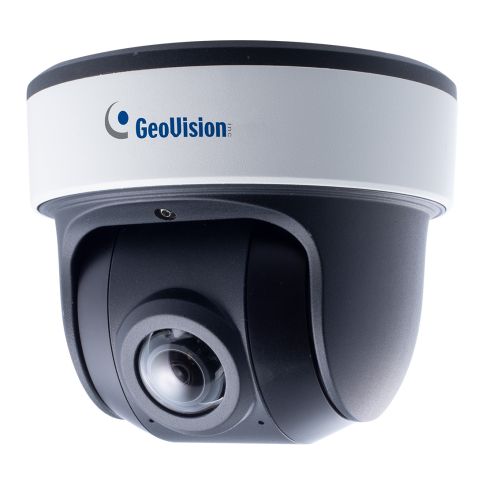

8 MP AI network IR 180° panoramic dome camera
| Content | |
| Video | |
| Image Sensor Type | Progressive scan super low lux CMOS |
|---|---|
| Image Sensor Size | 1/2.8" |
| Minimum Illumination (Color) | 0.012 lux |
| Minimum Illumination (B/W) | 0 lux (IR LED) |
| Low Light Technology | Super Low Lux |
| Color Technology | N/A |
| Lens | |
| Lens Type | Fixed lens |
| Focal Length | 1.68 mm |
| Zoom Ratio | N/A |
| Field of View (H) | 180° |
| Iris Control | Fixed iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 180° / 0° ~ 180° |
| Operational | |
| Illumination | Intelligent IR LED |
| Viewable Length | 15 m |
| Day and Night Mode | True day / night ICR |
| Backlight Compensation | WDR Pro, BLC |
| WDR (Wide Dynamic Range) | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Digital Image Stabilization | N/A |
| Defog | Defog |
| Motion Detection | Yes |
| Privacy Masking | Yes |
| Image Rotation | Image flip, Image mirror, Image rotation |
| Control Interface | N/A |
| Video Interface | N/A |
| Analytics | |
| AI Object Classification | Person detection, Vehicle detection |
| AI Analytics | Loitering, Region intrusion, Line crossing, Region entrance, Region exiting, Heat map, People counting |
| Intelligent Video Analytics | Motion detection, Object left, Object moving, Tampering, Line crossing, Audio detection |
| Facial Analytics | N/A |
| Dedicated Application | N/A |
| Alarm | |
| Alarm Input | N/A |
| Alarm Output | N/A |
| PIR Sensor | N/A |
| Light Warning | N/A |
| Audio | |
| Audio Input | N/A |
| Audio Output | N/A |
| Built-in Microphone | Yes |
| Built-in Speaker | N/A |
| Audio Communication | One-way audio |
| Network | |
| Ethernet | RJ-45 10/100 BASE-T |
| Wireless LAN | N/A |
| Mobile Broadband and GNSS | N/A |
| Video Compression | H.265, H.264, M-JPEG |
| Smart / Wise / Zip Streaming | N/A |
| Maximum Resolution | 8 MP / 3840 x 2160 / Ultra HD / 4K |
| Maximum Framerate (fps) | 25 fps / 8 MP |
| Streaming Capability | Triple streaming |
| Edge Storage | MicroSD, MicroSDHC, MicroSDXC, UHS-I |
| Memory Card Slot | 1 slot |
| API (Application Programming Interface) | ONVIF profile G, ONVIF profile S, ONVIF profile Q, ONVIF profile T, SIP |
| Network Storage | Network Optix Nx Witness, GV-VMS, GV‐NVR, GV‐Recording Server |
| Mobile and Desktop Applications | Nx Witness Mobile, GV-Edge Recording Manager, GV-Eye |
| Environmental | |
| Operating Temperature | -40°C ~ 60°C |
| Humidity | < 90% |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Electrical | |
| Input Voltage | 12 V DC, PoE (IEEE 802.3af) |
| Max Power Consumption | 9 W |
| Mechanical | |
| Dimensions | Ø 127.2 x 107.0 mm |
| Net Weight | 0.85 |
| Casing Material | Metal, Plastic |
| Casing Color | White |
| Certification | |
| Certificates | CE, NDAA |
| Package | |
| Package Contents | Download guide |
| Related Accessory | GV-Mount430, GV-Mount211-5 |
| Link to Manufacturer | www.geovision.com.tw |
| Notes | N/A |
