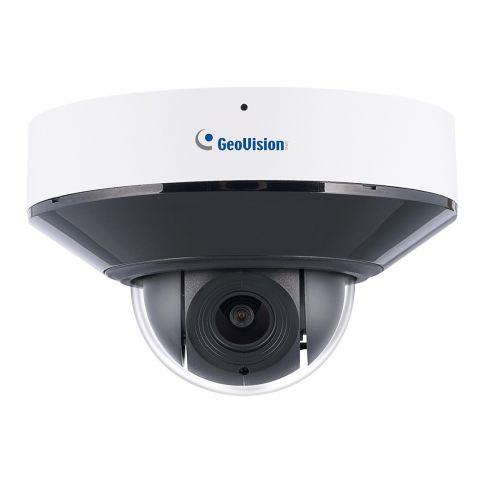

GV-GPTZ4810 • GeoVision
| Content | |
| Camera | |
| Image Sensor Type | Progressive scan super low lux CMOS |
|---|---|
| Image Sensor Size | 1/2.7" |
| Day and Night Mode | True day / night ICR |
| Minimum Illumination (Color) | 0,02 lux |
| Minimum Illumination (B/W) | 0 lux (IR LED) |
| Low Light Technology | Super Low Lux |
| Color Technology | N/A |
| Illumination | Intelligent IR LED |
| Viewable Length | 20 m |
| Lens | |
| Lens Type | Motorized varifocal lens |
| Focal Length | 3.18 ~ 7.42 mm |
| Zoom Ratio | 2.3x |
| Field of View (H) | 113.6° ~ 44.3° |
| Iris Control | Fixed iris |
| LiDAR | N/A |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 355° / 15° ~ 90° |
| Pan / Tilt Speed | Manual: 0.5° ~ 80°/s | 0.5° ~ 80°/s, Preset: 80°/s | 80°/s |
| Video | |
| Video Compression | H.265, H.264, M-JPEG |
| Smart / Wise / Zip Streaming | Smart streaming |
| Maximum Resolution | 4 MP / 2688 x 1520 |
| Maximum Framerate (fps) | 30 fps / 4 MP |
| Streaming Capability | Triple streaming |
| Operational | |
| Backlight Compensation | WDR, BLC |
| WDR (Wide Dynamic Range) | 108 dB |
| Digital Noise Reduction | 3D DNR |
| Digital Image Stabilization | N/A |
| Defog | N/A |
| Motion Detection | Yes |
| Privacy Masking | Yes |
| Image Rotation | Image flip, Image mirror |
| Analytics | |
| Auto tracking | Smart tracking |
| AI Object Classification | Person detection, Vehicle detection |
| AI Analytics | Region intrusion, Line crossing, Entering area, Leaving area |
| Intelligent Video Analytics | Motion detection |
| Facial Analytics | N/A |
| Dedicated Application | N/A |
| Interface | |
| Control Interface | N/A |
| Video Interface | N/A |
| Edge Storage | MicroSD, MicroSDHC, MicroSDXC |
| Memory Card Slot | 1 slot |
| Audio | |
| Audio Input | 1 |
| Audio Output | 1 |
| Built-in Microphone | Yes |
| Built-in Speaker | N/A |
| Audio Communication | Two-way audio |
| Alarm | |
| Alarm Input | 1 |
| Alarm Output | 1 |
| PIR Sensor | N/A |
| Light Warning | N/A |
| Network | |
| Ethernet | RJ-45 10/100 BASE-T |
| Wireless LAN | N/A |
| Mobile Broadband and GNSS | N/A |
| API (Application Programming Interface) | ONVIF profile G, ONVIF profile S, ONVIF profile T |
| Network Storage | Network Optix Nx Witness, GV-VMS, GV‐NVR, GV‐Recording Server |
| Mobile and Desktop Applications | Nx Witness Mobile, GV-Edge Recording Manager, GV-Eye |
| Environmental | |
| Operating Temperature | -30°C ~ 60°C |
| Humidity | < 90% |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Electrical | |
| Input Voltage | 12 V DC, PoE (IEEE 802.3af) |
| Max Power Consumption | 12 W |
| Mechanical | |
| Dimensions | Ø 116.1 x 75.0 mm |
| Net Weight | 0.46 |
| Wiper | N/A |
| Casing Material | Metal |
| Casing Color | Black, White |
| Certification | |
| Certificates | CE, NDAA |
| Package | |
| Package Contents | Quick start guide |
| Related Accessory | GV-Mount211-14, GV-Mount211-15, GV-Mount314, GV-Mount470, GV-Mount481, GV-Mount115, GV-Mount515 |
| Link to Manufacturer | www.geovision.com.tw |
| Notes | N/A |
