GV-APOE2411-V2 • GeoVision
SKU
GVAPOE2411.V2
Warranty:
24 months
Availability:

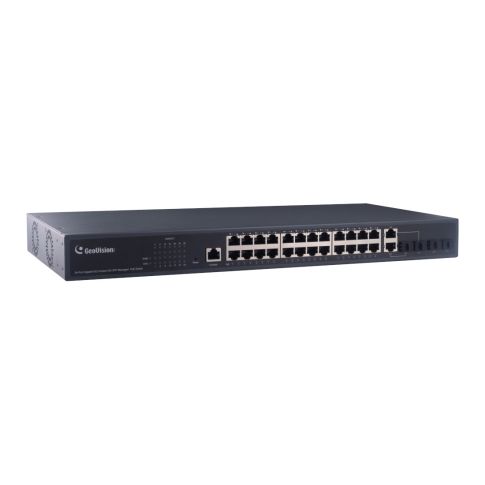

24 port GbE smart managed PoE switch
| Content | |
| Interface | |
| Management Type | Smart managed |
|---|---|
| Layer Supported | L2 |
| Total Ports | 30.000000 |
| Majority Port Speed | Gigabit ethernet |
| 10/100 Mbps | N/A |
| 10/100 Mbps PoE | N/A |
| 100/1000 Mbps | N/A |
| 100/1000 Mbps PoE | 24 ports |
| Multi 2.5/5 Gbps PoE | N/A |
| Gigabit SFP | 4 ports |
| 10G SFP+ | N/A |
| 40G SFP+ | N/A |
| Gigabit Combo (SFP/RJ-45) | 2 ports |
| Multi-Gigabit Combo SFP+/RJ-45 | N/A |
| Total PoE Ports | 24.000000 |
| Console Port | Yes |
| Alarm Output | N/A |
| Ethernet Interface | RJ-45 |
| Performance | |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| MAC Addresses | 8 K |
| Packet Buffer Memory | 4 Mb |
| Jumbo Frame | 9.6 KB |
| Standards | IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1p Class of Service (CoS), IEEE 802.1Q VLAN, IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1w RapIEEE 802.1w Rapid Spanning Tree Protocol (RSTP)id Spanning Tree Protocol (RSTP), IEEE 802.1X Port-based Network Access Control, IEEE 802.3 10BASE-T Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol (LACP), IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3z 1000BASE-X |
| PoE Standards | IEEE 802.3af up to 15.4 W, IEEE 802.3at up to 30 W |
| Network Redundancy | N/A |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C |
| Humidity | < 90% |
| Ingress Protection | N/A |
| Electrical | |
| Input Voltage | 100 ~ 240 V AC |
| Power Consumption | 390 W |
| Total PoE Budget | 370 W |
| Power Redundancy | N/A |
| Fanless | N/A |
| Mechanical | |
| Dimensions | 44.0 × 440.0 x 207.0 mm |
| Net Weight | 3.32 |
| Material | Metal |
| Color | Black |
| Mounting Type | Desktop, 19“ rack mounting 1U |
| Certification | |
| Certificates | CE, NDAA |
| Package | |
| Package Contents | Rack mount kit, Installation guide |
| Related Accessory | GV-LC V2, GV-LC10 V2 |
| Link to Manufacturer | www.geovision.com.tw |
| Notes | N/A |
