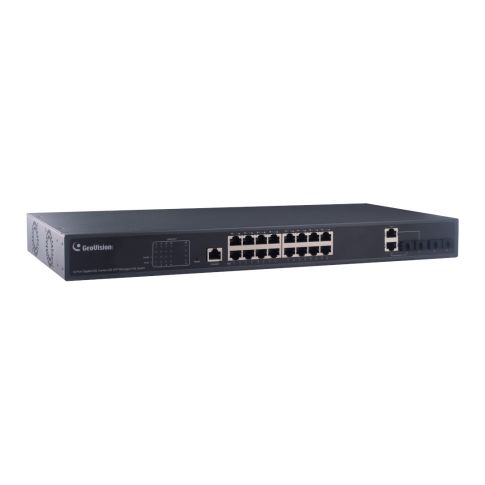

GV-APOE1611-V2 • GeoVision
| Content | |
| Interface | |
| Management Type | Smart managed |
|---|---|
| Layer Supported | L2 |
| Total Ports | 22.000000 |
| Majority Port Speed | Gigabit ethernet |
| 10/100 Mbps | N/A |
| 10/100 Mbps PoE | N/A |
| 100/1000 Mbps | N/A |
| 100/1000 Mbps PoE | 16 ports |
| Gigabit SFP | 2 ports |
| 10G SFP+ | N/A |
| Gigabit Combo (SFP/RJ-45) | 2 ports |
| Multi-Gigabit Combo SFP+/RJ-45 | N/A |
| Total PoE Ports | 16.000000 |
| Console Port | Yes |
| Alarm Output | N/A |
| Interface | RJ-45 |
| Performance | |
| Switching Capacity | 40 Gbps |
| Forwarding Rate | 29.76 Mpps |
| MAC Addresses | 8 K |
| Packet Buffer Memory | 4.1 Mb |
| Jumbo Frame | 9.6 KB |
| Standards | IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1p Class of Service (CoS), IEEE 802.1Q VLAN, IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1w RapIEEE 802.1w Rapid Spanning Tree Protocol (RSTP)id Spanning Tree Protocol (RSTP), IEEE 802.1X Port-based Network Access Control, IEEE 802.3 10BASE-T Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol (LACP), IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3z 1000BASE-X |
| PoE Standards | IEEE 802.3af up to 15.4 W, IEEE 802.3at up to 30 W |
| Network Redundancy | N/A |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C |
| Humidity | < 90% |
| Ingress Protection | N/A |
| Electrical | |
| Input Voltage | 100 ~ 240 V AC |
| Power Consumption | 280 W |
| Total PoE Budget | 250 W |
| Power Redundancy | N/A |
| Fanless | N/A |
| Mechanical | |
| Dimensions | 44.0 × 330.0 x 210.0 mm |
| Net Weight | 2.56 |
| Material | Metal |
| Color | Black |
| Mounting Type | Desktop, 19“ rack mount 1U |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | Rack mount kit, Installation guide |
| Link to Manufacturer | www.geovision.com.tw |
| Notes | N/A |
| mageworx-dynamic-options | |
Download firmware:
You can always find the current firmware on the manufacturer's official website www.geovision.com.tw
In the search section, you need to enter the name of the camera and find the exact model. You will then search for the Download - Firmware tab.
In case of questions, please contact our technical support: support@gemtech.eu
Phone number: 00421 52 7897891
Popular tools:
GV-IP Device Utility
GV-IP Device Utility detects any GeoVision devices within the same LAN. It allows you to quickly set the IP address, update firmware, export/import device settings for and reboot IP devices.
GV‐Edge Recording Manager
GV-Edge Recording Manger combines live monitoring and remote control of GeoVision IP devices and software into a single management interface.
If you need more help, please contact our technical support:support@gemtech.eu
Or call the phone number: 00421 52 7897891.
