FX-360 • Optex
SKU
OX.FX.360
Warranty:
24 months
Availability:

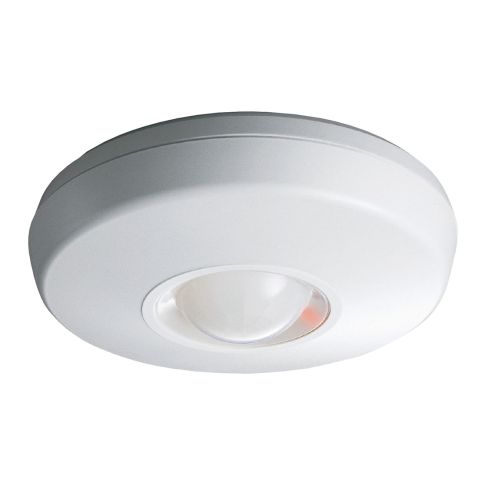

360 degree ceiling mount PIR detector
| Content | |
| Performance | |
| Communication | Wired |
|---|---|
| Installation Environment | Indoor |
| Compatibility | N/A |
| Sensing Element | PIR sensor |
| Detection Technology | Motion detector |
| Detection Range / Coverage | Ø 8 ~ 12 m |
| Detection Zones | 62 zones |
| Detection Angle | 360° |
| PIR Lens Type | Spherical lens |
| Activation Threshold | N/A |
| Notification Type | N/A |
| Siren Volume | N/A |
| Alarm Period | 2 s |
| Alarm Logic | N/A |
| Detectable Speed | 0.3 ~ 1.5 m/s |
| Sensitivity | Adjustable, 1.6 °C at 0.6 m/s |
| Walk Test | Walk test |
| Microwave frequency | N/A |
| Alarm Relay Output | N/A |
| EOL Resistors | N/A |
| Anti-masking | N/A |
| Anti-Sabotage and Tampering | Cover tamper, Wall tamper |
| Warm-up Period | 30 s |
| RFI Protection | 20 V/m |
| Temperature Compensation / Sensor | N/A |
| Installation Height | 2.4 ~ 3.6 m |
| Pet Immunity | N/A |
| Pet Immunity | N/A |
| Communication Technology | |
| Radio Technologies | N/A |
| Communication Range | N/A |
| Communication Type | N/A |
| Operating Frequencies | N/A |
| Maximum effective radiated power | N/A |
| Encryption | N/A |
| Rolling Code / Frequency Hopping | N/A |
| Video | |
| Video Verification | |
| Camera Lens | |
| Camera Angle | |
| Camera Resolution (max) | |
| Frame Rate (max) | |
| Illumination | |
| Wireless | |
| Environmental | |
| Operating Temperature | -20°C ~ 50°C |
| Humidity | < 95% |
| Ingress Protection | N/A |
| Electrical | |
| Input Voltage | 9.5 ~ 18 V DC |
| Power Consumption | 17 mA (Standby), 18 mA (Alarm) |
| Battery | N/A |
| Battery Life | N/A |
| Mechanical | |
| Dimensions | Ø120.0 x 37.0 mm |
| Net Weight | 0.140 |
| Casing material | Plastic |
| Casing Color | White |
| Mounting Type | Ceiling mounting |
| Certification | |
| Certificates | CE, EN 50131-2-2, Grade 2 |
| Package | |
| Package Contents | Installation instructions |
| Related Accessory | N/A |
| Link to Manufacturer | www.optex.co.jp/e/ |
| Notes | N/A |
