DoubleButton Jeweller White • Ajax
SKU
AJAX.DB.W
Warranty:
24 months
Availability:

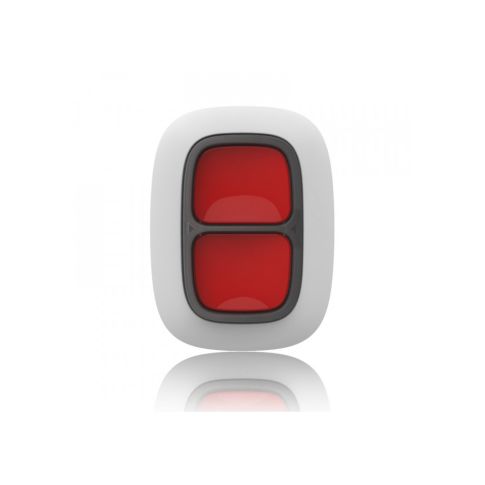

Wireless panic double button
| Content | |
| Performance | |
| Communication | Wireless |
|---|---|
| Installation Environment | Outdoor, Indoor |
| Compatibility | Hub (2G) Jeweller, Hub 2 (2G) Jeweller, Hub 2 (4G) Jeweller, Hub 2 Plus Jeweller, Hub Hybrid (2G), Hub Hybrid (4G), Hub Plus Jeweller, ReX 2 Jeweller, ReX Jeweller |
| Keypad | |
| Keypad Type | Mechanical buttons |
| Communication Technology | |
| Radio Technologies | Jeweller |
| Communication Range | 1300 m |
| Communication Type | Two-way |
| Operating Frequencies | 868.0 ~ 868.6 MHz |
| Maximum effective radiated power | 20 mW |
| Encryption | AES 128 |
| Rolling Code / Frequency Hopping | Frequency hopping |
| Environmental | |
| Operating Temperature | -10°C ~ 40°C |
| Humidity | < 75% |
| Ingress Protection | IP55 |
| Electrical | |
| Input Voltage | 3 V DC |
| Power Consumption | N/A |
| Backup Battery | CR2032 |
| Battery Life | 5 years |
| Mechanical | |
| Dimensions | 47.0 x 35.0 x 16.0 mm |
| Net Weight | 0.02 |
| Casing material | Plastic |
| Casing Color | White |
| Mounting Type | Wall mounting |
| Certification | |
| Certificates | EN 50131-1, EN 50131-3, EN 50131-6, EN 50131-5-3, Grade 2, CE |
| Package | |
| Package Contents | CR2032, Quick start guide |
| Link to Manufacturer | www.ajax.systems |
| Notes | N/A |
