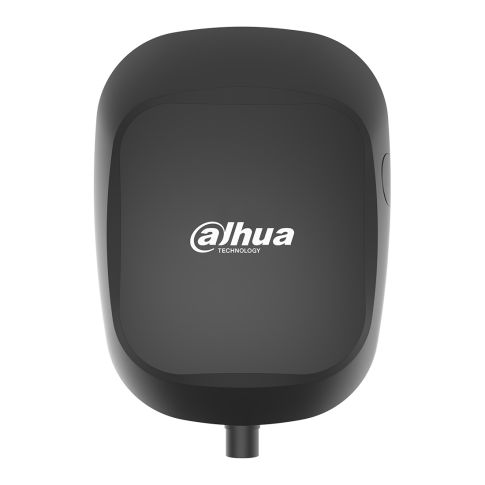

CFM5210-CYP • Dahua Technology
| Content | |
| Camera | |
| Image Sensor Type | Progressive scan CMOS |
|---|---|
| Image Sensor Size | 1/2.8" |
| Minimum Illumination (Color) | 0.1 lux |
| Illumination | N/A |
| Viewable Length | N/A |
| Lens | |
| Lens Type | Fixed lens |
| Focal Length | 6 mm |
| Field of View (H) | 56° |
| Video | |
| Video Output Signal | HDCVI |
| Maximum Resolution | 2 MP / 1920 x 1080 / Full HD 1080p |
| Maximum Framerate AHD | N/A |
| Maximum Framerate HDCVI | 25 fps / 2 MP |
| Analytics | |
| Advanced Driver Assistance System (ADAS) | Supported |
| Driver Status Monitoring (DSM) | N/A |
| Blind Spot Detection (BSD) | N/A |
| Operational | |
| Backlight Compensation | WDR, HLC, BLC |
| WDR (Wide Dynamic Range) | 100 dB |
| Digital Noise Reduction | 3D DNR |
| Interface | |
| Video Interface | Aviation connector |
| Audio | |
| Built-in Microphone | N/A |
| Built-in Speaker | N/A |
| Environmental | |
| Operating Temperature | -30°C ~ 70°C |
| Humidity | < 90% |
| Ingress Protection | IP54 |
| Electrical | |
| Input Voltage | 9 V ~ 16 V DC |
| Power Consumption | 2 W |
| Mechanical | |
| Dimensions | 85.5 x 63.0 x 35.0 mm |
| Net Weight | 0.141 |
| Casing material | Plastic |
| Casing Color | Black |
| Certification | |
| Certificates | CE |
| Package | |
| Package Contents | User manual, Adhesive tape |
| Related Accessory | N/A |
| Link to Manufacturer | www.dahuasecurity.com, www.hirige.com/en |
| Notes | N/A |
Firmware download:
You can find the current firmware on the official website of the manufacturer www.dahuasecurity.com.
In the upper right corner of the search section, you need to enter the name of the camera and find the exact model. Then look for the Firmware tab. Several firmware may be listed for each product. If they have the same name and differ only in the letters PN or NP, choose firmware with the PAL standard, and therefore PN.
If you do not want to upgrade the firmware yourself, please contact our technical support: technika@gemtech.eu
Or call the phone number: 052 7897891.
Popular tools:
ConfigTool
ConfigTool 5.1 integrates ConfigTool Batch Mode, ACS Config, VDP Config, ARC Config. lt supports Dahua devices'information check device initalization, single/batch lP modification, parameter configuration, password reset, firmware upgrade, device reset, time calibration, CGl.
Update time：2023-06-25 13:44:25
Version：V5.1.2
SmartPSS Lite
The SmartPSS Lite Client Software is designed to configure and manage Dahua devices such as IP cameras, recorders (NVRs, XVRs), access control devices (ASIs, ASCs, ASRs), attendance management devices (ASAs), and video intercom devices (VTOs, VTHs, VTSs).
Update time：04.02.2024
Version：V1.3.5
SmartPSS Lite Mac
The SmartPSS Lite Client Software is designed to configure and manage Dahua devices such as IP cameras, recorders (NVRs, XVRs), access control devices (ASIs, ASCs, ASRs), attendance management devices (ASAs), and video intercom devices (VTOs, VTHs, VTSs).
Update time：10.12.2024
Version：V1.003
